Asphalt shingle roof solar mounting
Specification
Wind Speed ：< 60m/s Snow load ：1.4 KN/m2 Standard：AS1170.2
Degree ：0° Arrangement ：Vertical or Horizontal Warranty：10 years
Installation Manual
1.Installing flashing kit at first by tapping screws；
2.Installing rail by side of L-feet , L-feet’s hole can adjust the height of rail.
3.Two rails supported each panel, fix panels by mid clamp and end clamp kit.
Asphalt shingle roof mounting accessories shown as bellow:
| Rail | Flashing | End clamp kit | Mid clamp kit |
 |
 |
 |
 |
Asphalt shingle roof type

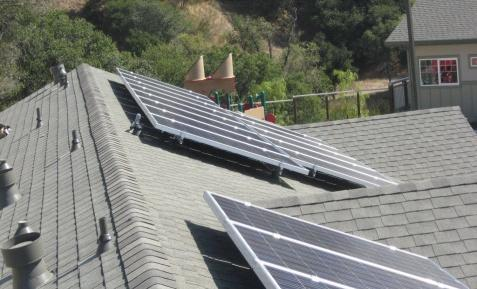

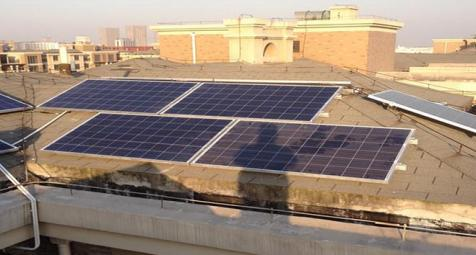

Case Shown
RFQ for all types of pitched roof solar mounting system
For all roof solar mounting inquiry, please let us know necessary information as bellow:
Necessary info. for us to design and quote
• What is your PV panels dimension? _____mm Length x _____mm Width x ____mm Thickness
• How many panel are you going to mount? _______Nos.
• What kind of roof do you have?__________(Tin/metal/tile/slate/shingle roof)
• What is your planned array ? ________(1x4, 1x5, 1x6 etc.)
• How is weather there, such as wind speed and snow load? ___m/s anit-wind speed and____KN/m2 snow load.
