Product
Base type Concrete block
Specification
| Wind Speed ：< 42m/s
Degree 0°-70 |
Snow load ：1.4 KN/m2
Arrangement ：Portrait |
Standard ：AS1170.2
Warranty：10 years |
Installation Manual
1.Install down beam, and then install main beam and rear post on this down beam.
2.Install mounting rail upon main beam
3.Install PV panels by mid clamp and end clamps.

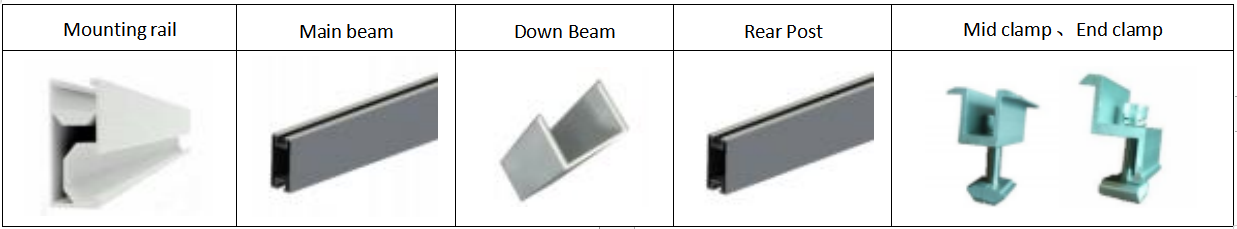

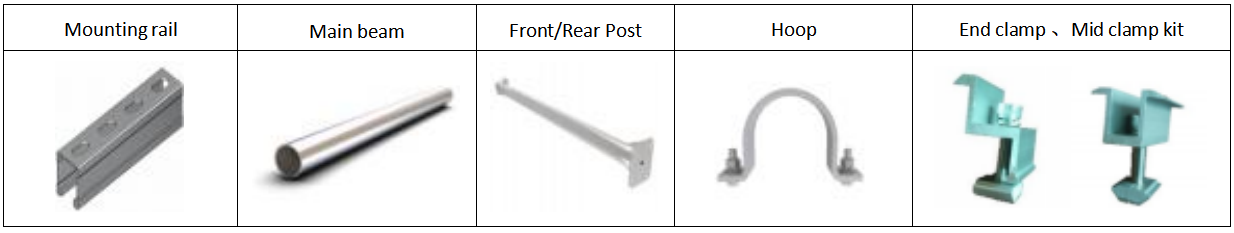

Main parts shown as bellow：

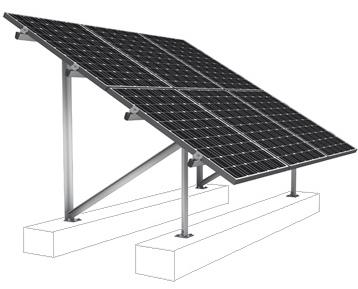

Concrete foundation 2 rows of panels with portrait solar mounting system
Aluminum structure, strong structure, easy to install and save your labor cost, mainly used for ground area which nearby sea.
| Specification：
Wind Speed ：< 42m/s Degree ：0°-70 Installation Manual： |
Snow load ：1.4 KN/m2
Arrangement ：Vertical |
Standard ：AS1170.2
Warranty：10 years |
| Installation Manual：
1.Install base brackets first, and then install column upon brackets. And then install main beam and diagonal brace on 2 columns. 2.Install mounting rail upon main beam. 3.Install PV panels by mid clamp and end clamps. |
||

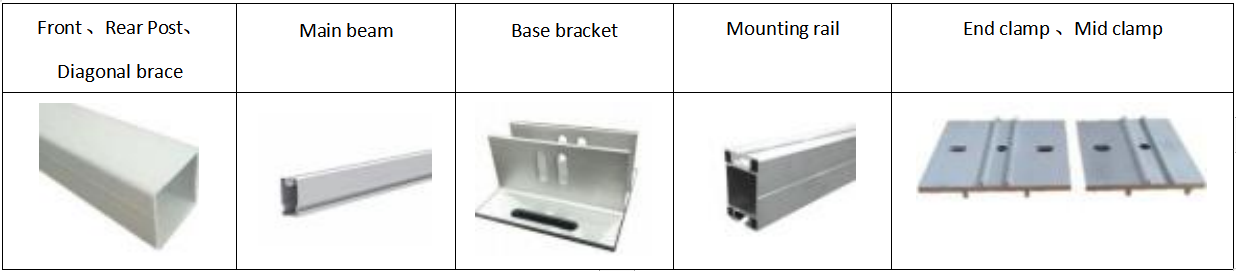

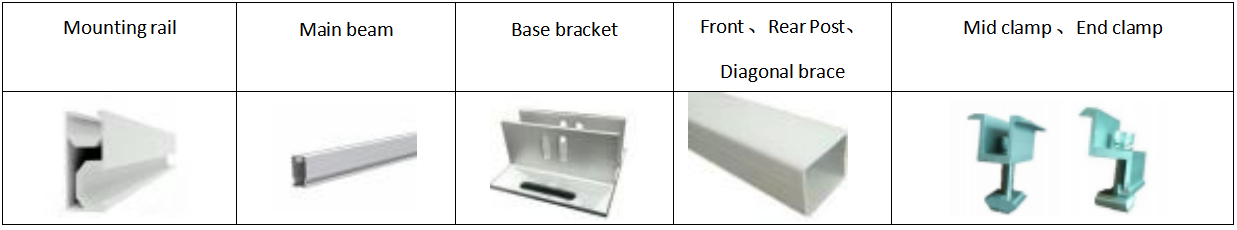

Main parts shown as bellow：

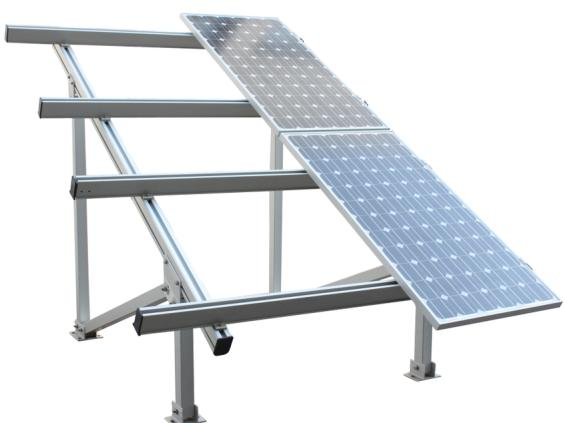

Single column 2 rows of panels with portrait solar mounting system
Aluminum structure, used for some area which low wind speed and nearby sea.
| Specification：
Wind Speed ：< 42m/s Degree ：0°-70 |
Snow load ：1.4 KN/m2
Arrangement ：Vertical |
Standard ：AS1170.2
Warranty：10 years |
| Installation Manual
1.Install base brackets first, and then install post upon brackets. And then install main beam and diagonal brace on single column. 2.Install mounting rail upon main beam 3.Install PV panels by mid clamp and end clamps. |
||

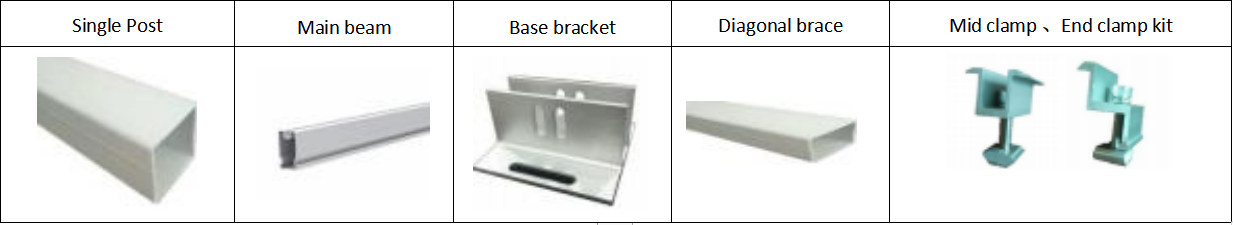

Main parts shown as bellow：

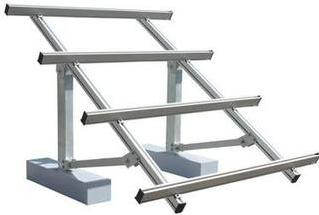

Normally 4 rows of panels with landscape solar mounting system
Aluminum structure
| Specification：Wind Speed ：< 42m/s Degree ：10°-70° | Snow load ：1.4 KN/m2Arrangement ：Horizontal | Standard ：AS1170.2Warranty：10 years |
| Installation Manual：1.Install base brackets first, and then install column upon brackets. And then install main beam on top of columns. And then install diagonal brace from rear post to main beam.
2.Install mounting rail upon main beam 3.Install PV panels by mid clamp and end clamps. |
||
Main parts shown as bellow：

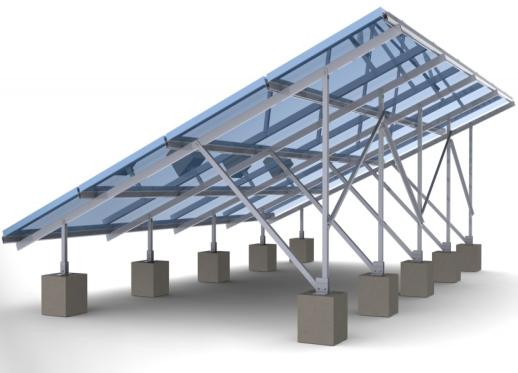

Concrete foundation 2 rows with vertical solar mounting system
Steel structure 2 rows of panels with portrait, which is very popular for big power station.
Specification:
Wind Speed: < 42m/s
Snow load: 1.4 KN/m2
Standard: AS1170.2
Degree: 10*-70
Arrangement : Vertical
Warranty: 10 years
Installation Manual:
1.Install posts first, and then install main beam and diagonal brace on 2 columns.
2.Install mounting rail upon main beam
3.Install PV panels by mid clamp and end clamps.

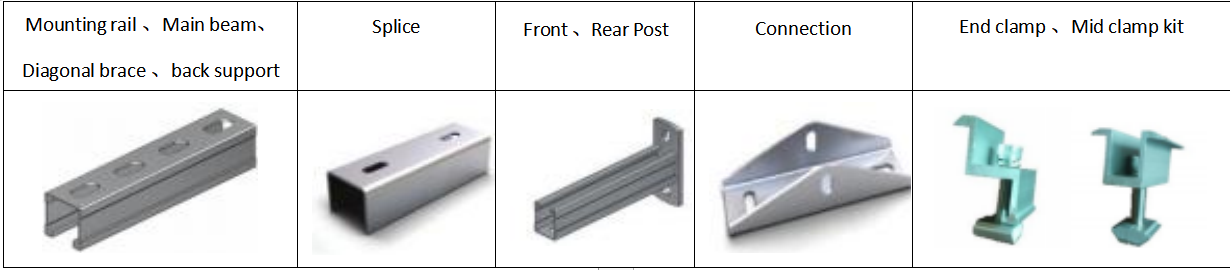

Main parts shown as bellow：

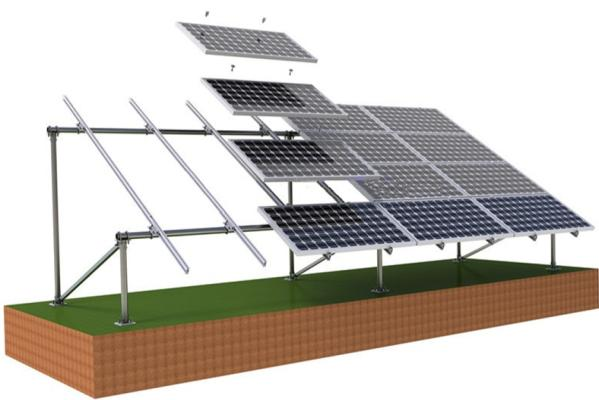

Concrete foundation 3-4 rows of panels with landscape solar mounting system
Steel structure, and use pole as front post and rear post, main beam. Just only mounting rail will use U-channel steel.
Also it’s very popular in Europe market, which build big solar power station.
Specification:
Wind Speed: < 42m/s
Snow load: 1.4 KN/m2
Standard: AS1170.2
Degree: 0*-70
Arrangement : Horizontal
Warranty: 10years
Installation Manual: .
1.ntatl posts ist, and then istal main beam and dagonal brce on 2 clumns Here main beam wll be italled from left to ight, no from front torer.
2.Install mounting rail upon main beam
3.nsta PV panels by mid clamp and end clamps.

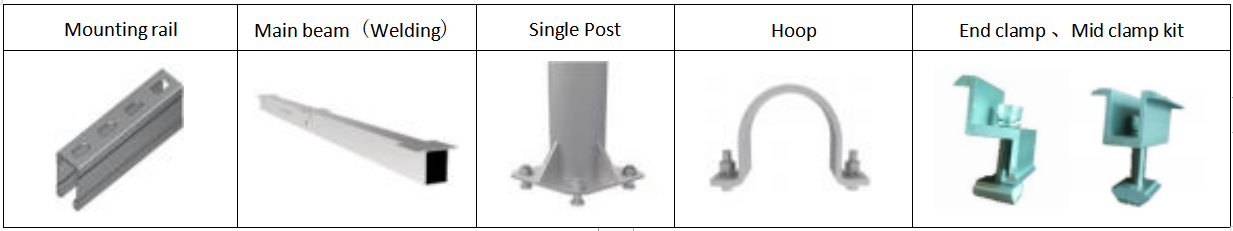

Main parts shown as bellow：

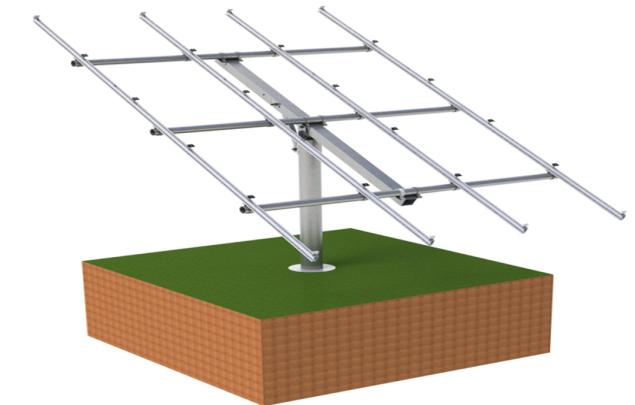

Single Post steel structure solar mounting system
According to customers’ different requirements, also sometimes Yunkai Solar need to provide Single post type solar mounting system.
| Specification：Wind Speed：< 42m/s Degree ：0°-70 | Snow load ：1.4 KN/m2Arrangement ：Vertical or Horizontal | Standard：AS1170.2Warranty：10 years |
| Installation Manual：
1.Install single post at first, and then install main beam and secondary beam. 2.Install mounting rail upon secondary beam 3.Install PV panels by mid clamp and end clamps on rails. |
||
Main parts shown as bellow：
