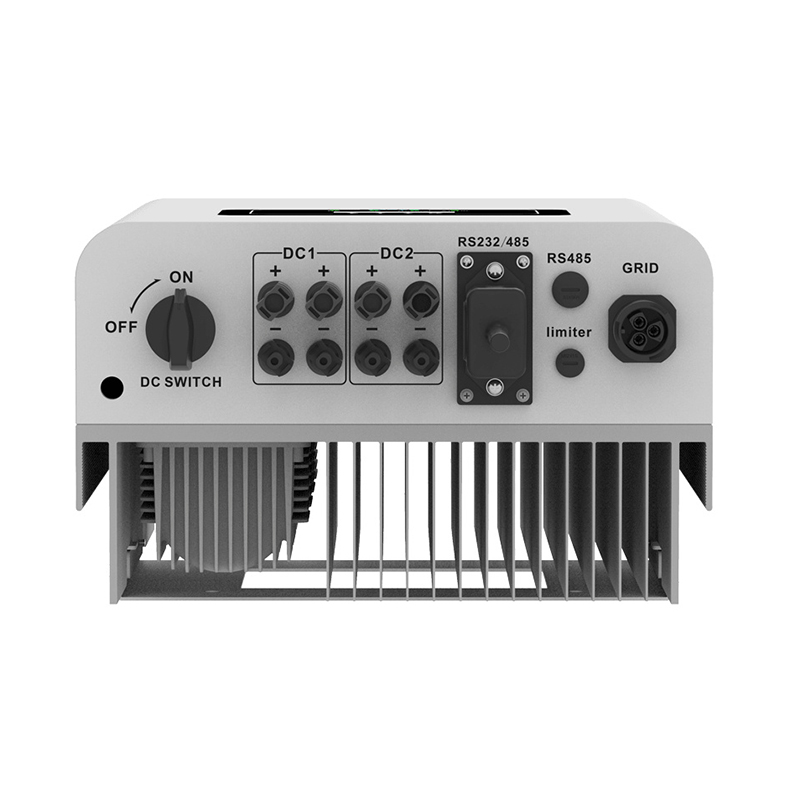

Deye Single Inverter SUN-7/7.5/8/9/10K-G
Remotely shutdown function
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
● 2 MPP trackers, Max. efficiency up to 97.7%
● Zero export application, VSG application
● String intelligent monitoring is an optional advanced function that takes advantage of modern technology to provide a more efficient and reliable monitoring solution for the power system.
● By using advanced algorithms and data analysis technology, string intelligent monitoring can monitor and analyze the operating status of each string in the power grid in real time, including key parameters such as voltage, current, and power.
● Anti-PID function (Optional)
● Low start-up voltage of 80V
Smart Monitoring Platform
| Model | SUN-7K-G | SUN-7.5K-G | SUN-8K-G | SUN-9K-G | SUN-10K-G | |||||||||||
| Input Side | ||||||||||||||||
| Max. DC Input Power (kW) | 9.1 | 9.8 | 10.4 | 11.7 | 13 | |||||||||||
| Max. DC Input Voltage (V) 550 | ||||||||||||||||
| Start-up DC Input Voltage (V) 80 | ||||||||||||||||
| MPPT Operating Range (V) | 70-500 | |||||||||||||||
| Max. DC Input Current (A) | 13+26 | 26+26 | ||||||||||||||
| Max. Short Circuit Current (A) | 19.5+39 | 39+39 | ||||||||||||||
| No.of MPP Trackers 2 | ||||||||||||||||
| No.of Strings per MPP Tracker | 1+2 | 2+2 | ||||||||||||||
| Output Side | ||||||||||||||||
| Rated Output Power (kW) | 7 | 7.5 | 8 | 9 | 10 | |||||||||||
| Max. Active Power (kW) | 7.7 | 8.25 | 8.8 | 9.9 | 11 | |||||||||||
| Nominal Output Voltage / Range (V) L/N/PE 220/230V (Optional) | ||||||||||||||||
| Rated Grid Frequency (Hz) | 50 / 60 (Optional) | |||||||||||||||
| Operating Phase | Single Phase | |||||||||||||||
| Rated AC Grid Output Current (A) | 31.8/30.4 | 34. 1/32.6 | 36.4/34.8 | 40.9/39. 1 | 45.5/43.5 | |||||||||||
| Max. AC Output Current (A) | 35/33.5 | 37.5/35.9 | 40/38.3 | 45/43 | 50/47.8 | |||||||||||
| Output Power Factor | 0.8 leading to 0.8 lagging | |||||||||||||||
| Grid Current THD | <3% | |||||||||||||||
| DC Injection Current (mA) | <0.5% | |||||||||||||||
| Grid Frequency Range | 45~55 or 55~65 (Optional) | |||||||||||||||
| Efficiency | ||||||||||||||||
| Max. Efficiency | 97.7% | |||||||||||||||
| Euro Efficiency | 97.5% | |||||||||||||||
| MPPT Efficiency | >99% | |||||||||||||||
| Protection | ||||||||||||||||
| DC Reverse-Polarity Protection | Yes | |||||||||||||||
| AC Short Circuit Protection | Yes | |||||||||||||||
| AC Output Overcurrent Protection | Yes | |||||||||||||||
| Output Overvoltage Protection | Yes | |||||||||||||||
| Insulation Resistance Protection | Yes | |||||||||||||||
| Ground Fault Monitoring | Yes | |||||||||||||||
| Anti-islanding Protection | Yes | |||||||||||||||
| Temperature Protection | Yes | |||||||||||||||
| Integrated DC Switch | Yes | |||||||||||||||
| Remote Software Upload | Yes | |||||||||||||||
| Remote Change of Operating Parameters | Yes | |||||||||||||||
| Surge Protection | DC Type II / AC Type II | |||||||||||||||
| General Data | ||||||||||||||||
| Cabinet Size (WxHxD mm) | 330×410×198.5 (Excluding Connectors and Brackets) | |||||||||||||||
| Weight (kg) | 15.3 | |||||||||||||||
| Topology | Transformerless | |||||||||||||||
| Internal Consumption | <1W (Night) | |||||||||||||||
| Running Temperature | -25-65℃, >45℃ Derating | |||||||||||||||
| Ingress Protection | IP65 | |||||||||||||||
| Noise Emission (Typical) | ≤35 dB | |||||||||||||||
| Cooling Concept | Free Cooling | |||||||||||||||
| Permissible Altitude (m) | 2000 | |||||||||||||||
| Warranty | 5 Years | |||||||||||||||
| Grid Connection Standard | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549- 1, G98, G99, C10- 11, UNE217002, NBR16149/NBR16150 |
|||||||||||||||
| Operating Surroundings Humidity | 0- 100% | |||||||||||||||
| Safety EMC / Standard | IEC/EN 61000-6- 1/2/3/4, IEC/EN 62109- 1, IEC/EN 62109-2 | |||||||||||||||
| Features | ||||||||||||||||
| DC Connection | MC-4 Mateable | |||||||||||||||
| AC Connection | IP65 Rated Plug | |||||||||||||||
| Display | LCD1602 | |||||||||||||||
| Interface | RS485/RS232/Wifi/LAN | |||||||||||||||
