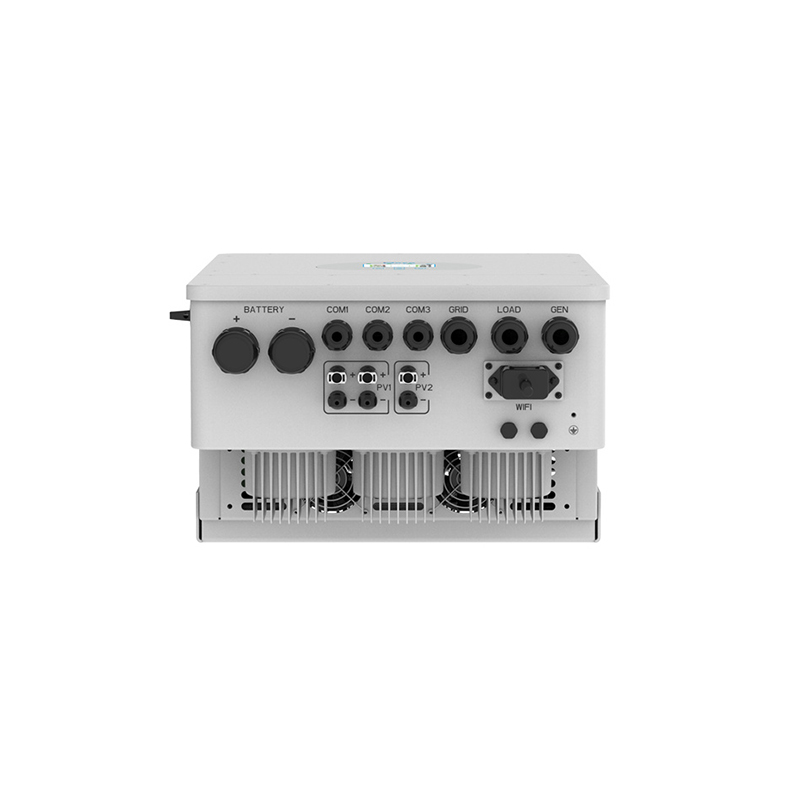

Deye Hybrid Inverter SUN-5/6/8/10/12K-SG04LP3
Remotely shutdown function
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
● 100% unbalanced output, each phase; Max. output up to 50% rated power
● AC couple to retrofifit existing solar system
● Max. 10 pcs parallel for on-grid and off-grid
● operation; Support multiple batteries parallel
● Max. charging/discharging current of 240A
● Support storing energy from diesel generator
● 48V low voltage battery, transformer isolation design
● 6 time periods for battery charging/discharging
Smart Monitoring Platform
| Model | SUN-5K -SG04LP3-EU |
SUN-6K -SG04LP3-EU |
SUN-8K -SG04LP3-EU |
SUN-10K -SG04LP3-EU |
SUN-12K -SG04LP3-EU |
|||||||||||||
| Battery Input Data | ||||||||||||||||||
| Battery Type | Lead-acid or Lithium-ion | |||||||||||||||||
| Battery Voltage Range (V) | 40-60 | |||||||||||||||||
| Max. Charging Current (A) | 120 | 150 | 190 | 210 | 240 | |||||||||||||
| Max. Discharging Current (A) | 120 | 150 | 190 | 210 | 240 | |||||||||||||
| External Temperature Sensor | Yes | |||||||||||||||||
| Charging Curve | 3 Stages / Equalization | |||||||||||||||||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||||||||||||
| PV String Input Data | ||||||||||||||||||
| Max. DC Input Power (W) | 6500 | 7800 | 10400 | 13000 | 15600 | |||||||||||||
| Rated PV Input Voltage (V) | 550 (160-800) | |||||||||||||||||
| Start-up Voltage (V) | 160 | |||||||||||||||||
| MPPT Voltage Range (V) | 200-650 | |||||||||||||||||
| Full Load DC Voltage Range (V) | 350-650 | |||||||||||||||||
| PV Input Current (A) | 13+13 | 26+13 | ||||||||||||||||
| Max. PV ISC(A) | 17+17 | 34+17 | ||||||||||||||||
| No.of MPP Trackers 2 | ||||||||||||||||||
| No.of Strings per MPP Tracker | 1+1 | 2+1 | ||||||||||||||||
| AC Output Data | ||||||||||||||||||
| Rated AC Output Active Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | |||||||||||||
| Max AC Output Active Power (W) | 5500 | 6600 | 8800 | 11000 | 13200 | |||||||||||||
| AC Output Rated Current (A) | 7.6/7.2 | 9. 1/8.7 | 12. 1/11.6 | 15.2/14.5 | 18.2/17.4 | |||||||||||||
| Max AC Output Current (A) | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19. 1 | |||||||||||||
| Max. Three-phase Unbalanced Output Current (A) | 11.4/10.9 | 13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26. 1 | |||||||||||||
| Max Output short circuit current (A) 75 | ||||||||||||||||||
| Max. Continuous AC Passthrough (A) | 45 | |||||||||||||||||
| Peak Power (off grid) | 2 time of rated power, 10 S | |||||||||||||||||
| Power Factor | 0.8 leading to 0.8 lagging | |||||||||||||||||
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | |||||||||||||||||
| Grid Type | Three Phase | |||||||||||||||||
| Total Harmonic Distortion (THD) | <3% (of nominal power) | |||||||||||||||||
| DC Current Injection | <0.5% In | |||||||||||||||||
| Efficiency | ||||||||||||||||||
| Max. Efficiency | 97.60% | |||||||||||||||||
| Euro Efficiency | 97.00% | |||||||||||||||||
| MPPT Efficiency Protection |
99.90% | |||||||||||||||||
| Anti-islanding Protection, PV String Input Reverse Polarity Protection, | ||||||||||||||||||
| Integrated | Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection |
|||||||||||||||||
| Surge Protection | DC Type III / AC Type III | |||||||||||||||||
| Over Voltage Category | DC Type II/AC Type III | |||||||||||||||||
| Certifications and Standards | ||||||||||||||||||
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549- 1, G98, G99, C10- 11, UNE217002, NBR16149/NBR16150 |
|||||||||||||||||
| Safety EMC / Standard | IEC/EN 61000-6- 1/2/3/4, IEC/EN 62109- 1, IEC/EN 62109-2 | |||||||||||||||||
| General Data | ||||||||||||||||||
| Operating Temperature Range (C) | -40-60℃, >45℃ Derating | |||||||||||||||||
| Cooling | Smart Cooling | |||||||||||||||||
| Noise (dB) | ≤45 dB | |||||||||||||||||
| Communication with BMS | RS485; CAN | |||||||||||||||||
| Weight (kg) | 33.6 | |||||||||||||||||
| Cabinet Size (WxHxD mm) | 422×702×281 (Excluding Connectors and Brackets) | |||||||||||||||||
| Protection Degree | IP65 | |||||||||||||||||
| Installation Style | Wall-mounted | |||||||||||||||||
| Warranty | 5 Years (10 Years Optional) | |||||||||||||||||
