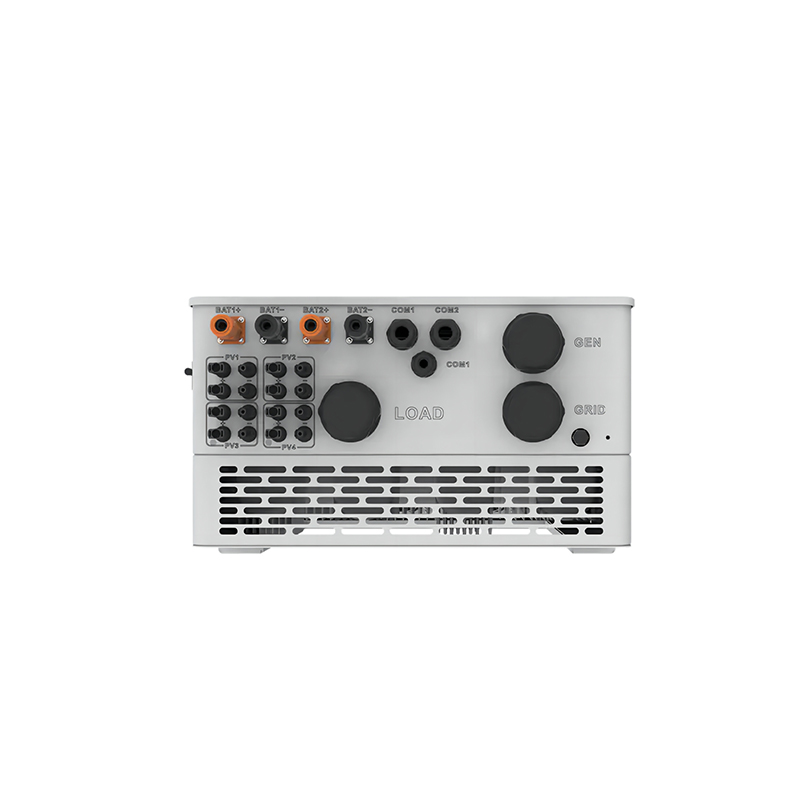

Deye Hybrid Inverter SUN-29.9/30/35/40/50 K-SG01HP3-EU-BM3/4
Remotely shutdown function
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
● 100% unbalanced output；each phase
● AC couple to retrofifit existing solar system
● *Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
● Max. charging/discharging current of 100A
● High voltage battery, higher efficiency
● 6 time periods for battery charging/discharging
● Support storing energy from diesel generator
Smart Monitoring Platform
| Model | SUN-29.9K-SG01HP3 SUN-30K-SG01HP3 -EU-BM3 -EU-BM3 |
SUN-35K-SG01HP3 -EU-BM3 |
SUN-40K-SG01HP3 -EU-BM4 |
SUN-50K-SG01HP3 -EU-BM4 |
||||||||||||
| Battery Input Data | ||||||||||||||||
| Battery Type | Lithium-ion | |||||||||||||||
| Battery Voltage Range (V) | 160-800 | |||||||||||||||
| Max. Charging Current (A) | 50+50 | |||||||||||||||
| Max. Discharging Current (A) | 50+50 | |||||||||||||||
| Number of Battery Input | 2 | |||||||||||||||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||||||||||
| PV String Input Data | ||||||||||||||||
| Max. DC Input Power (W) | 38870 | 39000 | 45500 | 52000 | 65000 | |||||||||||
| Max. DC Input Voltage (V) | 1000 | |||||||||||||||
| Start-up Voltage (V) 180 | ||||||||||||||||
| MPPT Range (V) | 150-850 | |||||||||||||||
| Full Load DC Voltage Range (V) | 360-850 360-850 360-850 360-850 450-850 | |||||||||||||||
| Rated DC Input Voltage (V) 600 | ||||||||||||||||
| PV Input Current (A) | 36+36+36+36 55+55+55+55 |
|||||||||||||||
| Max. PV ISC(A) | ||||||||||||||||
| No.of MPP Trackers | 3 4 | |||||||||||||||
| No.of Strings per MPP Tracker | 2+2+2 | 2+2+2+2 | ||||||||||||||
| AC Output Data | ||||||||||||||||
| Rated AC Output Active Power (W) | 29900 | 30000 | 35000 | 40000 | 50000 | |||||||||||
| Max AC Output Active Power (W) | 29900 | 30000 | 38500 | 44000 | 55000 | |||||||||||
| AC Output Rated Current (A) | 45.4/43.4 | 45.5/43.5 | 53. 1/50.8 | 60.7/58 | 75.8/72.5 | |||||||||||
| Max. AC Output Rated Current (A) | 45.4/43.4 | 50/47.8 | 58.4/55.8 | 66.7/63.8 | 83.4/79.7 | |||||||||||
| Max. Three-phase Unbalanced Output Current (A) | 60 | 60 | 60 | 70 | 83.3 | |||||||||||
| Max. Continuous AC Passthrough (A) 200 | ||||||||||||||||
| Peak Power (Off Grid) | 1.5 time of rated power, 10 S | |||||||||||||||
| Generator Input/Smart Load /AC Couple Current (A) |
45.4 / 200 / 45.4 | 45.5 / 200 / 45.5 | 53.1 / 200 / 53.1 | 75.8 / 200 / 75.8 | ||||||||||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||||||||||||
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | |||||||||||||||
| Grid Type | Three Phase | |||||||||||||||
| Total Harmonic Distortion (THD) | <3% (of nominal power) | |||||||||||||||
| DC Current Injection | <0.5% In | |||||||||||||||
| Efficiency | ||||||||||||||||
| Max. Efficiency | 97.60% | |||||||||||||||
| Euro Efficiency | 97.00% | |||||||||||||||
| MPPT Efficiency | 99.90% | |||||||||||||||
| Protection | ||||||||||||||||
| Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, |
|||||||||||||||
| Output Shorted Protection, Surge Protection | ||||||||||||||||
| Over Voltage Category | DC Type II/AC Type III | |||||||||||||||
| Certifications and Standards | ||||||||||||||||
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549- 1, G98, G99, C10- 11, UNE217002, NBR16149/NBR16150 |
|||||||||||||||
| Safety EMC / Standard | IEC/EN 61000-6- 1/2/3/4, IEC/EN 62109- 1, IEC/EN 62109-2 | |||||||||||||||
| General Data | ||||||||||||||||
| Operating Temperature Range (C) | -40-60℃, >45℃ Derating | |||||||||||||||
| Cooling | Smart Cooling | |||||||||||||||
| Noise (dB) | ≤65 dB | |||||||||||||||
| Communication with BMS | RS485; CAN | |||||||||||||||
| Weight (kg) | 80 | |||||||||||||||
| Cabinet Size (WxHxD mm) | 527×894×294 (Excluding Connectors and Brackets) | |||||||||||||||
| Protection Degree | IP65 | |||||||||||||||
| Installation Style | Wall-mounted | |||||||||||||||
| Warranty | 5 Years (10 Years Optional) | |||||||||||||||
| *Note: Five units in parallel has realized, ten units in parallel is under testing. Must use the inverters of the same model for parallel connecting. | ||||||||||||||||
