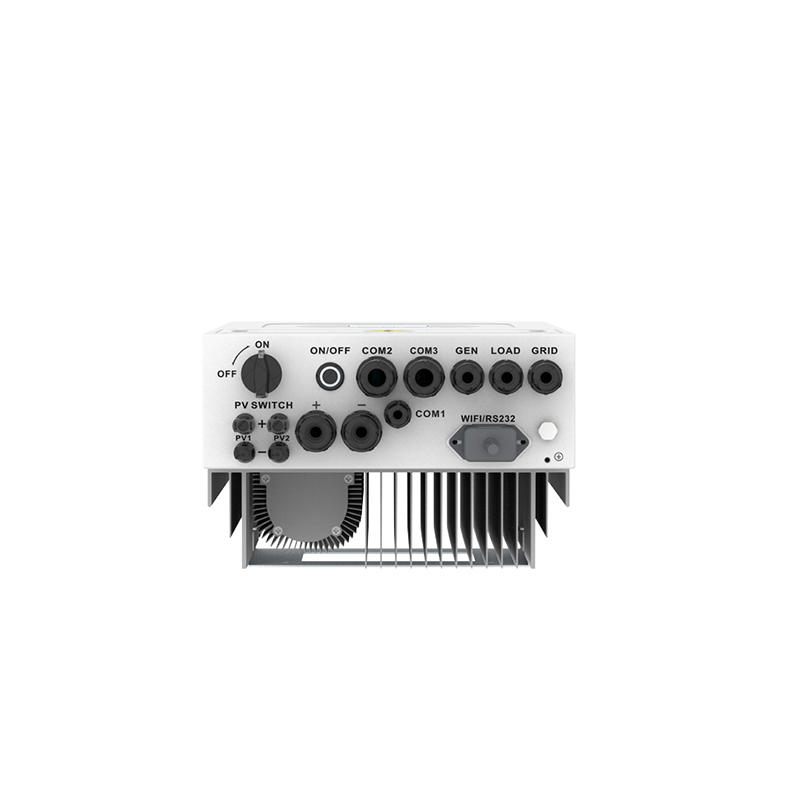

Deye Hybrid Inverter SUN-3.6/5/6K-SG03LP1-EU
Remotely shutdown function
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
● Colorful touch LCD, IP65 protection degree
● AC couple to retrofifit existing solar system
● Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
● Max. charging/discharging current of 135A
● 6 time periods for battery charging/discharging
● Support storing energy from diesel generator
Smart Monitoring Platform
| Model | SUN-3.6K-SG03LP1-EU | SUN-5K-SG03LP1-EU | SUN-6K-SG03LP1-EU | ||||||||
| Battery Input Data | |||||||||||
| Battery Type | Lead-acid or Lithium-ion | ||||||||||
| Battery Voltage Range (V) | 40-60 | ||||||||||
| Max. Charging Current (A) | 90 | 120 | 135 | ||||||||
| Max. Discharging Current (A) | 90 | 120 | 135 | ||||||||
| External Temperature Sensor | Yes | ||||||||||
| Charging Curve | 3 Stages / Equalization | ||||||||||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||||||||||
| PV String Input Data | |||||||||||
| Max. DC Input Power (W) | 4680 | 6500 | 7800 | ||||||||
| Rated PV Input Voltage (V) | 370 (125-500) | ||||||||||
| Start-up Voltage (V) | 125 | ||||||||||
| MPPT Voltage Range (V) | 150-425 | ||||||||||
| Full Load DC Voltage Range (V) | 300-425 | ||||||||||
| PV Input Current (A) | 13+13 | ||||||||||
| Max. PV ISC(A) | 17+17 | ||||||||||
| No.of MPP Trackers | 2 | ||||||||||
| No.of Strings per MPP Tracker | 1+1 | ||||||||||
| AC Output Data | |||||||||||
| Rated AC Output Active Power (W) | 3600 | 5000 | 6000 | ||||||||
| Max AC Output Active Power (W) | 3960 | 5500 | 6600 | ||||||||
| AC Output Rated Current (A) | 16.4/15.7 | 22.7/21.7 | 27.3/26. 1 | ||||||||
| Max AC Output Current (A) | 18/17.2 | 25/23.9 | 30/28.7 | ||||||||
| Max. Continuous AC Passthrough (A) | 35 | 40 | |||||||||
| Peak Power (off grid) | 2 time of rated power, 10 S | ||||||||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||||||||
| Power Factor | 1 | ||||||||||
| Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac | ||||||||||
| Grid Type | Single Phase | ||||||||||
| Total Harmonic Distortion (THD) | <3% (of nominal power) | ||||||||||
| DC Current Injection | <0.5% In | ||||||||||
| Efficiency | |||||||||||
| Max. Efficiency | 97.60% | ||||||||||
| Euro Efficiency | 96.50% | ||||||||||
| MPPT Efficiency Protection |
99.90% | ||||||||||
| Anti-islanding Protection, PV String Input Reverse Polarity Protection, | |||||||||||
| Integrated Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, | |||||||||||
| Output Shorted Protection, Surge Protection | |||||||||||
| Over Voltage Category | DC Type II/AC Type III | ||||||||||
| Certifications and Standards | |||||||||||
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549- 1, G98, G99, C10- 11, UNE217002, NBR16149/NBR16150 |
||||||||||
| Safety EMC / Standard | IEC/EN 61000-6- 1/2/3/4, IEC/EN 62109- 1, IEC/EN 62109-2 | ||||||||||
| General Data | |||||||||||
| Operating Temperature Range (C) | -40-60℃, >45℃ Derating | ||||||||||
| Cooling | Smart Cooling | ||||||||||
| Noise (dB) | ≤30 dB | ||||||||||
| Communication with BMS | RS485; CAN | ||||||||||
| Weight (kg) | 20.5 | ||||||||||
| Cabinet Size (WxHxD mm) | 330×580×232 (Excluding Connectors and Brackets) | ||||||||||
| Protection Degree | IP65 | ||||||||||
| Installation Style | Wall-mounted | ||||||||||
| Warranty | 5 Years (10 Years Optional) | ||||||||||
