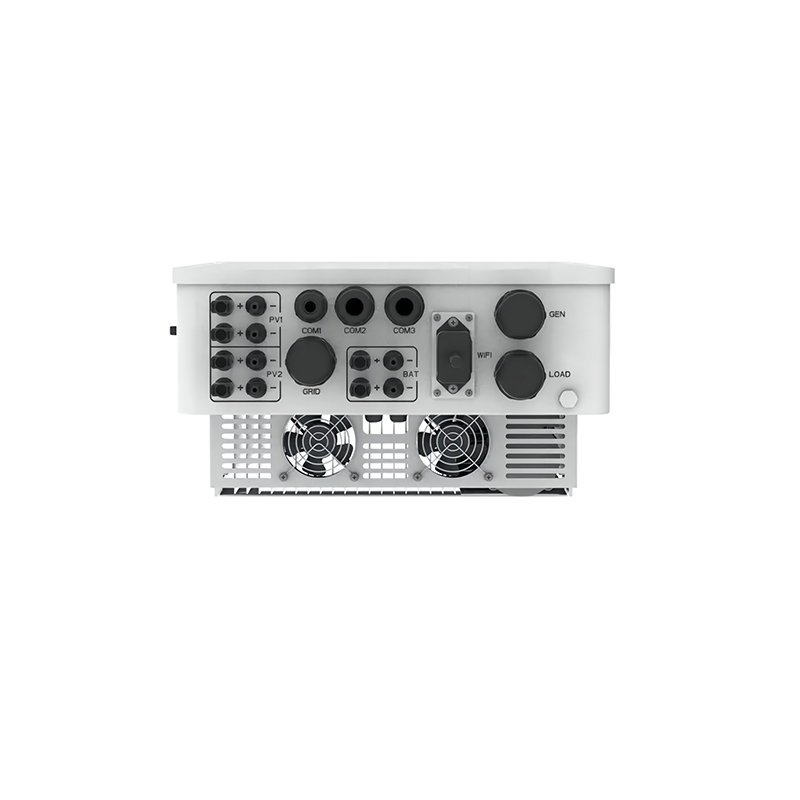

Deye Hybrid Inverter SUN- 6 / 8 / 10 / 12 / 15 / 20/25 K-SG01HP3-EU-AM2

Short Description:

SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 | 5-25kW | Three Phase | 2 MPPT | Hybrid Inverter | High Voltage Battery

Higher yields / Safe & Reliable / Smart / User-friendly

SUN 5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 is brand new three phase hybrid inverter with High voltage battery 160-700V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.


Product Detail

Product Tags

Remotely shutdown function

dasd

The intelligent monitoring platform also supports firmware update function. With the continuous advancement of technology and changes in market demand, photovoltaic power stations need to continuously upgrade equipment to remain competitive. Through the firmware update function of the intelligent monitoring platform, operation and maintenance personnel can obtain the latest software version at any time and remotely push the update program to the inverter product for installation. In this way, the equipment of the photovoltaic power station is always in optimal condition, improving power generation efficiency and stability.

● 100% unbalanced output, each phase

● AC couple to retrofifit existing solar system

● *Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

● Max. charging/discharging current of 50A

● High voltage battery, higher effificiency

● The most suitable charging process for lithium-ion batteries is to first precharge (restorative charge) the fully discharged battery cells, then perform constant current charging in a constant current mode, and finally perform constant voltage charging in a constant voltage mode.

● A diesel generator is a common backup power device that converts fuel, such as diesel, into electricity. This conversion process involves a combustion process in which fuel reacts with oxygen to produce heat and gases that move a piston, which in turn spins a crankshaft, and is ultimately converted into electricity by a generator.

Smart Monitoring Platform

SUN-5K-SG01

SUN-6K-SG01

SUN-8K-SG01

SUN-10K-SG01

SUN-12K-SG01 SUN-15K-SG01 SUN-20K-SG01

SUN-25K-SG01

Model

HP3-EU-AM2

HP3-EU-AM2

HP3-EU-AM2

HP3-EU-AM2

HP3-EU-AM2 HP3-EU-AM2 HP3-EU-AM2

HP3-EU-AM2

Battery Input Data
Battery Type

Lithium-ion

Battery Voltage Range (V)

160~700

Max. Charging Current (A)    37

50

Max. Discharging Current (A)    37

50

Number of Battery Input                                                                                                                                                           1
Charging Strategy for Li-Ion Battery

Self-adaption to BMS

PV String Input Data
Max. DC Input Power (W)

6500

7800

10400

13000

15600

19500

26000

32500

Max. DC Input Voltage (V)

1000

  Start-up Voltage (V)                                                                                                                                                                 180
MPPT Range (V)

150-850

195-850

195-850

260-850

325-850

340-850

420-850

500-850

625-850

      600

20+20

26+26

30+30

39+39

No.of MPP Trackers                                                                                                                                                                    2
No.of Strings per MPP Tracker

1+1

2+1

2+2

AC Output Data
Rated AC Output and UPS Power (W)

5000

6000

8000

10000

12000

15000

20000

25000

Max. AC Output Power (W)

5500

6600

8800

11000

13200

16500

22000

26000

AC Output Rated Current (A)

7.6/7.3

9. 1/8.7

12.2/11.6

15.2/14.5

18.2/17.4

22.8/21.8

30.4/29

37.9/36.3

Max. AC Output Rated Current (A)

8.4/8

10/9.6

13.4/12.8

16.7/16

20/19.2

25/24

33.4/31.9

39.4/37.7

Max. Three-phase Unbalanced Output Current(A)

13

13

18

22

25

30

35

40

Max. Continuous AC Passthrough (A)

40

80

Peak Power (off grid) 1.5 time of rated power, 10 S
Generator Input/Smart Load
/AC Couple Current (A)

7.6/40/7.6

9. 1/40/9. 1

12.2/40/12.2

15.2/40/15.2

18.2/80/18.2

22.8/80/22.8

30.4/80/30.4

37.9/80/37.9

Power Factor     0.8 leading to 0.8 lagging
Output Frequency and Voltage

50/60Hz; 3L/N/PE  220/380, 230/400Vac

Grid Type

Three Phase

Total Harmonic Distortion (THD)

<3% (of nominal power)

DC Current Injection

<0.5% In

Efficiency
Max. Efficiency

97.60%

Euro Efficiency

97.00%

MPPT Efficiency

99.90%

Protection
Integrated                            Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
 Output Shorted Protection, Surge Protection
Over Voltage Category

DC Type II/AC Type III

Certifications and Standards
Grid Regulation

VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549- 1,
G98, G99, C10- 11, UNE217002, NBR16149/NBR16150

Safety EMC / Standard

IEC/EN 61000-6- 1/2/3/4, IEC/EN 62109- 1, IEC/EN 62109-2

General Data
Operating Temperature Range (C)    -40-60℃, >45℃ Derating
Cooling

Smart Cooling

Noise (dB)

≤55 dB

Communication with BMS

RS485; CAN

Weight (kg)

30.5

Cabinet Size (WxHxD mm)

408×638×237 (Excluding Connectors and Brackets)

Protection Degree

IP65

  Installation Style

Wall-mounted

Warranty

5 Years (10 Years Optional)

*Note: Five units in parallel has realized, ten units in parallel is under testing. Must use the inverters of the same model for parallel connecting.
