Deye Hybrid Inverter SUN-8K-SG01LP1-EU

Short Description:

SUN 8K-SG01LP1-EU | 5-8kW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

Higher yields / Safe & Reliable / Smart / User-friendly


Product Detail

Product Tags

Remotely shutdown function

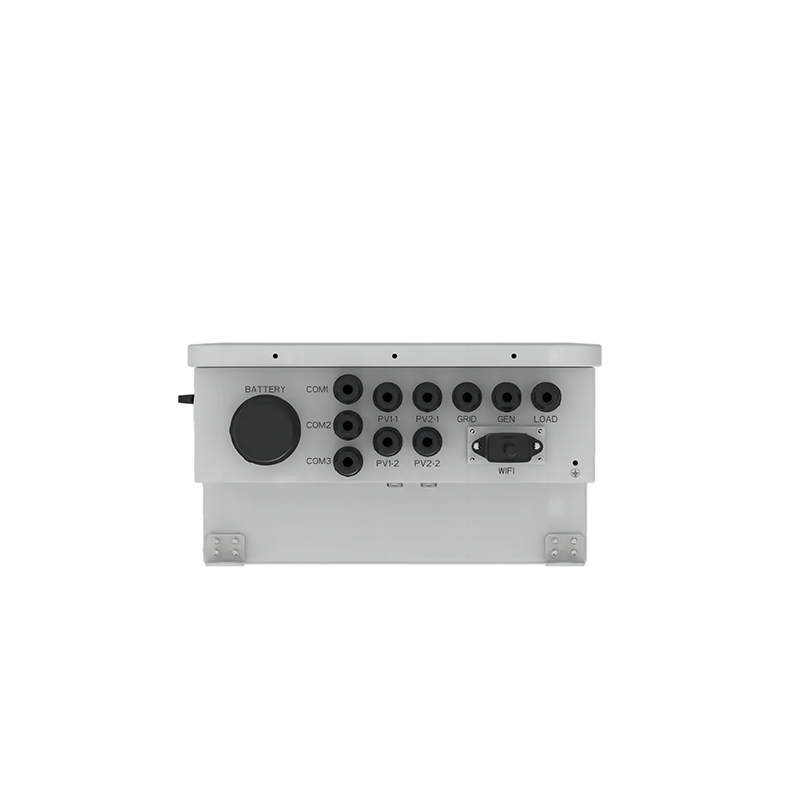

SUN-8K-SG01LP1-EU主图4

The series, SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single phase and three phase parallel application, and the Max. parallel units is up to 16pcs.

● Colorful touch LCD, IP65 protection degree

● 6 time periods for battery charging/discharging

● Max. charging/discharging current of 190A

● AC couple to retrofit existing solar system

● Support storing energy from diesel generator

● Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Smart Monitoring Platform

Model         SUN-5K
-SG01LP1-US
            SUN-6K
-SG01LP1-US
       SUN-7.6K
-SG01LP1-US/EU
           SUN-8K
-SG01LP1-US/EU
Battery Input Data
Battery Type       Lead-acid or Lithium-ion
Battery Voltage Range (V) 40-60
Max. Charging Current (A) 120 135 190 190
Max. Discharging Current (A) 120 135 190 190
External Temperature Sensor Yes
Charging Curve     3 Stages / Equalization
Charging Strategy for Li-Ion Battery       Self-adaption to BMS10400
PV String Input Data
Max. DC Input Power (W)
Rated PV Input Voltage (V) 370 (125-500)
Start-up Voltage (V) 125
MPPT Voltage Range (V) 150-425
Full Load DC Voltage Range (V)PV Input Current (A) 300-425 200-425
13+13 26+13 26+26
Max. PV ISC(A) 22+22 44+22 44+44
No.of MPP Trackers                                                                                                                                                                   2
No.of Strings per MPP Tracker             1+1                                                  2+1                                                                              2+25000                                                 6000                                            7600                                               8000
5500                                                 6600                                            8360                                               8800
20.8/24                                           25/28.8                       31.7/36.5           34.5/33          33.3/38.5        36.4/34.8
22.9/26.4                                       27.5/31.7                     34.8/40.2           38/36.3          36.7/42.3          40/38.3
AC Output Data
Rated AC Output Active Power (W)
Max AC Output Active Power (W)
AC Output Rated Current (A)
Max AC Output Current (A)
Max. Continuous AC Passthrough (A)                                                                                                                                  50
Peak Power (off grid) 2 time of rated power, 10 S
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Power Factor 1
Output Frequency and Voltage 50 / 60Hz; L1/L2/N(PE)  120/240Vac (split phase), 208Vac (2/3 phase),
L/N/PE 220/230Vac (single phase)
Grid Type Split Phase; 2/3 phase; Single Phase
Total Harmonic Distortion (THD) <3% (of nominal power)
DC Current Injection <0.5% In
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency
Protection
99.90%
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Integrated                                                                                   Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
 Output Shorted Protection, Surge Protection
Over Voltage Category DC Type II/AC Type III
Certifications and Standards
Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549- 1,
G98, G99, C10- 11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard IEC/EN 61000-6- 1/2/3/4, IEC/EN 62109- 1, IEC/EN 62109-2
General Data
Operating Temperature Range (C)     -40-60℃, >45℃ Derating
Cooling Smart Cooling
Noise (dB) ≤30 dB
Communication with BMS RS485; CAN
Weight (kg) 32
Cabinet Size (WxHxD mm) 420×670×233 (Excluding Connectors and Brackets)
Protection Degree IP65
 Installation Style Wall-mounted
Warranty 5 Years (10 Years Optional)
