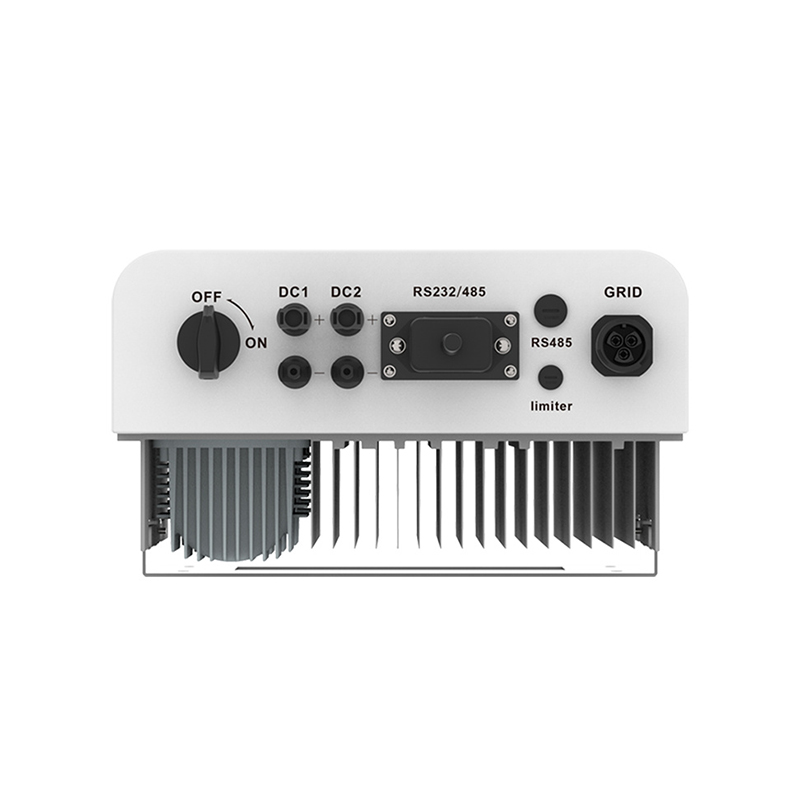

Deye Hybrid Single String Inverter SUN-3.6/4/4.6/5/6K-G04
Remotely shutdown function
The intelligent monitoring platform also has the function of remotely setting parameters. This means that the operation and maintenance personnel of the photovoltaic power station can connect to the inverter products through the Internet without having to go to the site in person to make adjustments. They can easily remotely adjust the output power, voltage and other parameters of the inverter based on real-time monitoring data and system requirements to ensure the stable operation of the photovoltaic power station. This flexibility and convenience greatly simplifies the operation and maintenance process, saving time and labor costs.
● 2 MPP tracker, Max. efficiency up to 97.5%
● vsg：During the overseas investment process, a risk investment application form needs to be submitted to the local government or relevant departments.
● String intelligent monitoring (optional)
● Wide output voltage range
● Anti-PID function (Optional)
● Low start-up voltage of 80V
Smart Monitoring Platform
| Model | |||||||||
| Input Side | |||||||||
| Max. DC Input Power (kW) | 4.7 | 5.2 | 5.98 | 6.5 | 7.8 | ||||
| Max. DC Input Voltage (V) 550 | |||||||||
| Start-up DC Input Voltage (V) | 80 | ||||||||
| MPPT Operating Range (V) | 70-500 | ||||||||
| Max. DC Input Current (A) | 13+13 | ||||||||
| Max. Short Circuit Current (A) | 19.5+19.5 | ||||||||
| No.of MPP Trackers | 2 | ||||||||
| No.of Strings per MPP Tracker | 1+1 | ||||||||
| Output Side | 3.6 | 4 | 4.6 | 5 | 6 | ||||
| Rated Output Power (kW) | |||||||||
| Max. Active Power (kW) | 3.96 | 4.4 | 5.06 | 5.5 | 6.6 | ||||
| Nominal Output Voltage / Range (V) | L/N/PE 220/230V (Optional) | ||||||||
| Rated Grid Frequency (Hz) | 50 / 60 (Optional) | ||||||||
| Operating Phase | Single Phase | ||||||||
| Rated AC Grid Output Current (A) | 16.4/15.7 | 18.2/17.4 | 20.9/20 | 22.7/21.7 | 27.3/26. 1 | ||||
| Max. AC Output Current (A) | 18/17.2 | 20/19. 1 | 23/22 | 25/23.9 | 30/28.7 | ||||
| Output Power Factor | 0.8 leading to 0.8 lagging | ||||||||
| Grid Current THD | <3% | ||||||||
| DC Injection Current (mA) | <0.5% | ||||||||
| Grid Frequency Range | 45~55 or 55~65 (Optional) | ||||||||
| Efficiency | 97.3% | 97.5% | 97.5% | 97.5% | 97.5% | ||||
| Max. Efficiency | |||||||||
| Euro Efficiency | 97. 1% | 97.3% | 97.3% | 97.3% | 97.3% | ||||
| MPPT Efficiency | >99% | ||||||||
| Protection | |||||||||
| DC Reverse-Polarity Protection | Yes | ||||||||
| AC Short Circuit Protection | Yes | ||||||||
| AC Output Overcurrent Protection | Yes | ||||||||
| Output Overvoltage Protection | Yes | ||||||||
| Insulation Resistance Protection | Yes | ||||||||
| Ground Fault Monitoring | Yes | ||||||||
| Anti-islanding Protection | Yes | ||||||||
| Temperature Protection | Yes | ||||||||
| Integrated DC Switch | Yes | ||||||||
| Remote Software Upload | Yes | ||||||||
| Remote Change of Operating Parameters | Yes | ||||||||
| Surge Protection | DC Type II / AC Type II | ||||||||
| General Data | |||||||||
| Cabinet Size (WxHxD mm) | 330×323×190 (Excluding Connectors and Brackets) | ||||||||
| Weight (kg) | 8 | ||||||||
| Topology | Transformerless | ||||||||
| Internal Consumption | <1W (Night) | ||||||||
| Running Temperature | -25-65℃, >45℃ Derating | ||||||||
| Ingress Protection | IP65 | ||||||||
| Noise Emission (Typical) | ≤35 dB | ||||||||
| Cooling Concept | Free Cooling | ||||||||
| Permissible Altitude (m) | 2000 | ||||||||
| Warranty | 5 Years | ||||||||
| Grid Connection Standard | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549- 1, G98, G99, C10- 11, UNE217002, NBR16149/NBR16150 |
||||||||
| Operating Surroundings Humidity | 0- 100% | ||||||||
| Safety EMC / Standard IEC/EN 61000-6- 1/2/3/4, IEC/EN 62109- 1, IEC/EN 62109-2 | |||||||||
| Features | |||||||||
| DC Connection | MC-4 Mateable | ||||||||
| AC Connection | IP65 Rated Plug | ||||||||
| Display | LCD1602 | ||||||||
| Interface | RS485/RS232/Wifi/LAN | ||||||||
