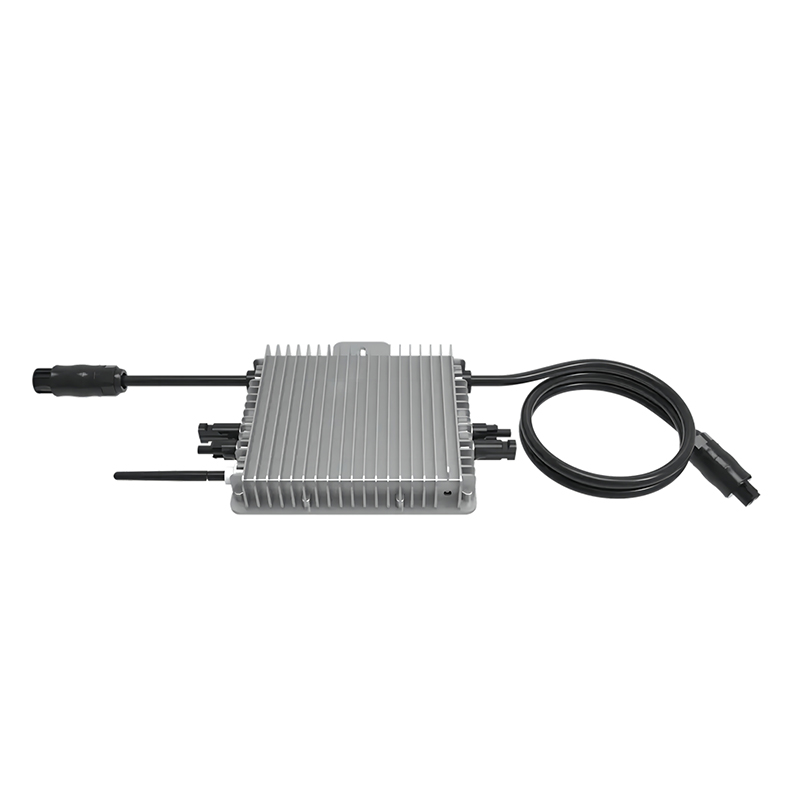

Deye Micro-Inverter SUN300/500G3-US-220/EU-230
Remotely shutdown function
Through the collector, the data will be automatically uploaded to the smart photovoltaic monitoring platform. You can easily obtain detailed information from the monitoring platform including daily power generation, monthly power generation, annual power generation, etc.; you can view real-time through the web page or mobile APP data and historical data.
● Zigbee or WIFI communication
● Deye inverter products support reactive power compensation function, which can adjust the reactive power of the power grid, thereby improving the stability and power quality of the power grid.
● The product supports a quick shutdown function, which can quickly disconnect the power supply to ensure safety.
● IP67 protection degree，10 years warranty
● 2 MPP trackers, module level monitoring
Smart Monitoring Platform
| Model | SUN600G3 -US-220 |
SUN600G3 -EU-230 |
SUN800G3 -US-220 |
SUN800G3 -EU-230 |
SUN1000G3 -US-220 |
SUN1000G3 -EU-230 |
||||||
| Input Data (DC) | ||||||||||||
| Recommended Input Power (STC) | 210-420W (2 Pieces) | 210-500W (2 Pieces) | 210-600W (2 Pieces) | |||||||||
| Maximum Input DC Voltage (V) 60 | ||||||||||||
| MPPT Voltage Range (V) | 25-55 | |||||||||||
| Full Load DC Voltage Range (V) | 24.5-55 | 33-55 | 40-55 | |||||||||
| Max. DC Short Circuit Current (A) | 2×19.5 | |||||||||||
| Max. Input Current (A) | 2×13 | |||||||||||
| No.of MPP Trackers | 2 | |||||||||||
| No.of Strings per MPP Tracker 1 | ||||||||||||
| Output Data (AC) | ||||||||||||
| Max. Output Apparent Power (VA) | 600 | 800 | 1000 | |||||||||
| Rated Output Power (W) | 600 | 800 | 1000 | |||||||||
| Rated Output Current (A) | 2.7 | 2.6 | 3.6 | 3.5 | 4.5 | 4.4 | ||||||
| Nominal Voltage / Range (this may vary with grid standards) |
220V/ 0.85Un- 1. 1Un |
230V/ 0.85Un- 1. 1Un |
220V/ 0.85Un- 1. 1Un |
230V/ 0.85Un- 1. 1Un |
220V/ 0.85Un- 1. 1Un |
230V/ 0.85Un- 1. 1Un |
||||||
| Nominal Frequency / Range | 50 / 60Hz | |||||||||||
| Extended Frequency / Range | 45-55Hz / 55-65Hz | |||||||||||
| Power Factor | >0.99 | |||||||||||
| Maximum Units per Branch
Efficiency |
8 | 6 | 5 | |||||||||
| CEC Weighted Efficiency | 95% | |||||||||||
| Peak Inverter Efficiency | 96.5% | |||||||||||
| Static MPPT Efficiency | 99% | |||||||||||
| Night Time Power Consumption | 50mW | |||||||||||
| Mechanical Data | ||||||||||||
| Ambient Temperature Range | -40-60℃, >45℃ Derating | |||||||||||
| Cabinet Size (WxHxD mm) | 212×229×40 (Excluding Connectors and Brackets) | |||||||||||
| Weight (kg) | 3.5 | |||||||||||
| Cooling | Free Cooling | |||||||||||
| Enclosure Environmental Rating | IP67 | |||||||||||
| Features | ||||||||||||
| Communication | WIFI | |||||||||||
| Grid Connection Standard | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549- 1, G98, G99, C10- 11, UNE217002, NBR16149/NBR16150 |
|||||||||||
| Safety EMC / Standard | UL 1741, IEC62109- 1/-2, IEC61000-6- 1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3 | |||||||||||
| Warranty | 10 Years | |||||||||||
