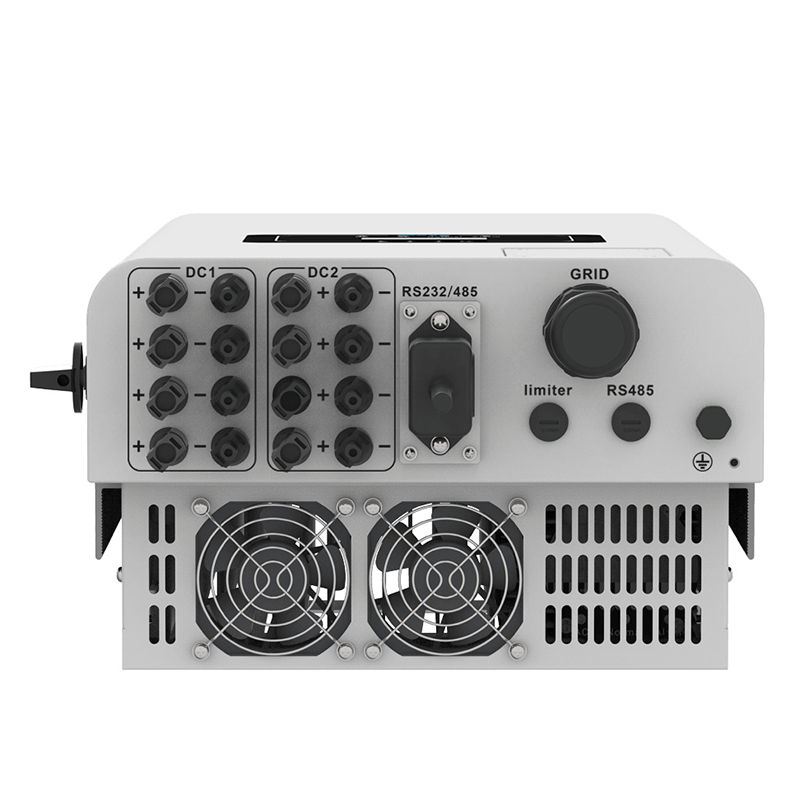

Deye String Inverter SUN-30/33/35/36K-G04
Remotely shutdown function
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
● 2 MPP tracker, Max. efficiency up to 98.6%
● Zero export application, VSG application
● By monitoring the photovoltaic strings in real time, the inverter will alarm when there is an abnormality in the string (blocking, reduced power generation), prompting maintenance personnel to perform timely repairs. The technology can improve efficiency, reduce costs and increase power generation.
● Electronic devices may require different input and output voltages, so a power supply with a wide output voltage range is needed to meet these needs.
● The anti-PID function refers to the function of the power supply to suppress the potential-induced decay (PID) effect of the battery component.
Smart Monitoring Platform
| Model | ||||||||||
| Input Side | ||||||||||
| Max Power (kW) | 39 | 42.9 | 45.5 | 46.8 | ||||||
| Max Voltage (V) | 1000 | |||||||||
| Start-up DC Input Voltage (V) 250 | ||||||||||
| MPPT Operating Range (V) | 200-850 | |||||||||
| Max. DC Input Current (A) | 40+40 | |||||||||
| Max. Short Circuit Current (A) | 60+60 | |||||||||
| No.of MPP Trackers | 2 | |||||||||
| No.of Strings per MPP Tracker | 3+3 | |||||||||
| Output Side | ||||||||||
| Rated Output Power (kW) | 30 | 33 | 35 | 36 | ||||||
| Max. Active Power (kW) | 33 | 36.3 | 38.5 | 39.6 | ||||||
| Nominal Output Voltage / Range (V) 3L/N/PE 220/380V, 230/400V | ||||||||||
| Rated Grid Frequency (Hz) | 50 / 60 (Optional) | |||||||||
| Operating Phase | Three Phase | |||||||||
| Rated AC Grid Output Current (A) | 45.5/43.5 | 50/47.8 | 53/50.7 | 54.5/52.2 | ||||||
| Max. AC Output Current (A) | 50/47.9 | 55/52.6 | 58.3/55.8 | 60/57.4 | ||||||
| Output Power Factor | 0.8 leading to 0.8 lagging | |||||||||
| Grid Current THD | <3% | |||||||||
| DC Injection Current (mA) | <0.5% | |||||||||
| Grid Frequency Range | 45~55 or 55~65 (Optional) | |||||||||
| size and design | ||||||||||
| Max. Efficiency | 98.6% | |||||||||
| Euro Efficiency | 97.8% | |||||||||
| MPPT Efficiency | >99%Yes | |||||||||
| Protection | ||||||||||
| DC Reverse-Polarity Protection | ||||||||||
| AC Short Circuit Protection | Yes | |||||||||
| AC Output Overcurrent Protection | Yes | |||||||||
| Output Overvoltage Protection | Yes | |||||||||
| Insulation Resistance Protection | Yes | |||||||||
| Ground Fault Monitoring | Yes | |||||||||
| Anti-islanding Protection | Yes | |||||||||
| Temperature Protection | Yes | |||||||||
| Integrated DC Switch | Yes | |||||||||
| Remote Software Upload | Yes | |||||||||
| Remote Change of Operating Parameters | Yes | |||||||||
| Protect | DC Type II / AC Type II | |||||||||
| General Data | ||||||||||
| Cabinet Size (WxHxD mm) | 362×577×215 (Excluding Connectors and Brackets) | |||||||||
| Weight (kg) | 23 | |||||||||
| Topology | Transformerless | |||||||||
| Internal Consumption | <1W (Night) | |||||||||
| Running Temperature | -25-65℃, >45℃ Derating | |||||||||
| Ingress Protection | IP65 | |||||||||
| Noise Emission (Typical) | ≤50 dB | |||||||||
| Cooling Concept | Smart Cooling | |||||||||
| Permissible Altitude (m) | 2000 | |||||||||
| Warranty | 5 Years | |||||||||
| Grid Connection Standard | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549- 1, G98, G99, C10- 11, UNE217002, NBR16149/NBR16150 |
|||||||||
| Operating Surroundings Humidity | 0- 100% | |||||||||
| Safety EMC / Standard IEC/EN 61000-6- 1/2/3/4, IEC/EN 62109- 1, IEC/EN 62109-2 | ||||||||||
| Features | ||||||||||
| DC Connection | MC-4 Mateable | |||||||||
| AC Connection | IP65 Rated Plug | |||||||||
| Display | LCD1602 | |||||||||
| Interface | RS485/RS232/Wifi/LAN | |||||||||
