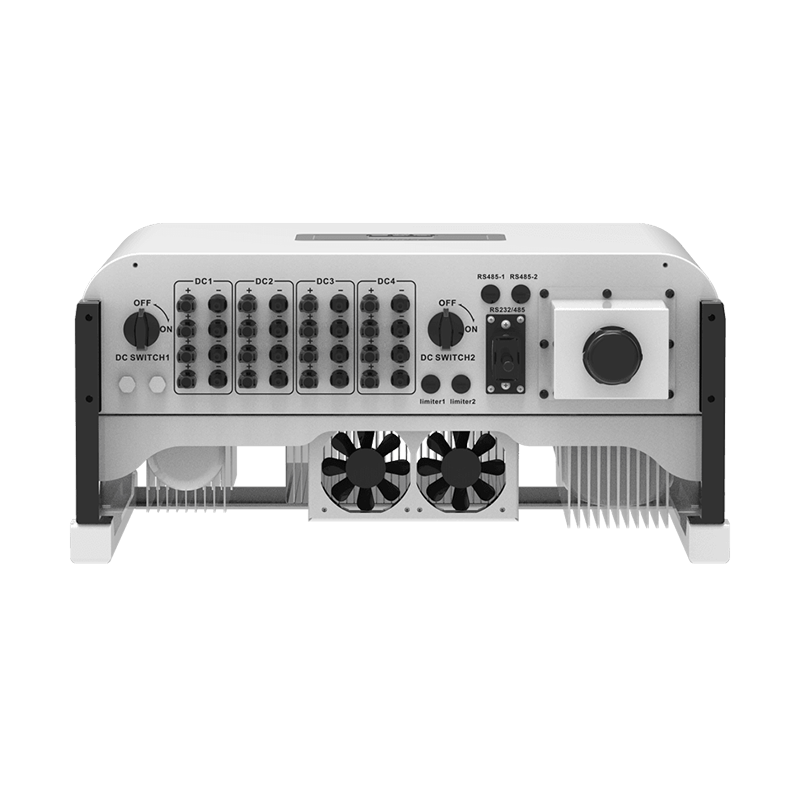

Deye String Inverter SUN-40/50/60K-G03

Short Description:

SUN-30/33/35/40/50/60K-G03 | 30-60kW | Three Phase | 4 MPPT

Higher yields / Safe & Reliable / Smart / User-friendly

This series grid-tie inverter is preferred choice for commercial PV system. With the free-standing design, it greatly reduces installation time and costs. With a Max. 4 MPPTs design and Max. capacity of 50 kW, it is scalable up to the megawatt range.

Send email to us

Product Detail

Product Tags

Remotely shutdown function

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

● 4 MPP tracker, Max. efficiency up to 98.7%

● Zero export application, VSG application

● String intelligent monitoring (optional)

● Wide output voltage range

● Anti-PID function (Optional)

Smart Monitoring Platform

Model	SUN-30K-G03 SUN-33K-G03 SUN-35K-G03 SUN-40K-G03 SUN-50K-G03 SUN-60K-G03

Max. DC Input Power (kW)	39		42.9		45.5	52	65	78
Max. DC Input Voltage (V)	1000
Start-up DC Input Voltage (V)	250
MPPT Operating Range (V)	200~850
Max. DC Input Current (A)	40+40		40+40+40				40+40+40+40
Max. Short Circuit Current (A)	60+60		60+60+60				60+60+60+60
No.of MPP Trackers	2		3				4
No.of Strings per MPP Tracker	3
Output Side
Rated Output Power (kW)	30			33	35	40	50	60
Max. Active Power (kW)	33			36.3	38.5	44	55	66
Nominal Output Voltage / Range (V)				3L/N/PE 220/380V, 230/400V
Rated Grid Frequency (Hz)				50 / 60 (Optional)
Operating Phase				Three phase
Rated AC Grid Output Current (A)	45.5/43.5			50/47.8	53/50.7	60.6/58	75.8/72.5	90.9/87
Max. AC Output Current (A)	50/47.9			55/52.6	58.3/55.8	66.7/63.8	83.3/79.7	100/95.7
Output Power Factor				0.8 leading to 0.8 lagging
Grid Current THD				<3%
DC Injection Current (mA)				<0.5%
Grid Frequency Range				47~52 or 57~62 (Optional)
Eﬃciency
Max. Eﬃciency	98.7%
Euro Eﬃciency	98%
MPPT Eﬃciency	>99%
Protection
DC Reverse-Polarity Protection				Yes
AC Short Circuit Protection				Yes
AC Output Overcurrent Protection				Yes
Output Overvoltage Protection				Yes
Insulation Resistance Protection				Yes
Ground Fault Monitoring				Yes
Anti-islanding Protection				Yes
Temperature Protection				Yes
Integrated DC Switch				Yes
Remote software upload				Yes
Remote change of operating parameters				Yes
Surge protection				DC Type II / AC Type II
General Data
Size (mm)		647.5W×537H×303.5D
Weight (kg)		44.5
Topology		Transformerless
Internal Consumption		<1W (Night)
Running Temperature		-25~65C, >45C derating
Ingress Protection		IP65
Noise Emission (Typical)		<50 dB
Cooling Concept		Smart cooling
Max. Operating Altitude Without Derating		2000m
Warranty		5 years
Grid Connection Standard		VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Operating Surroundings Humidity		0- 100%
Safety EMC / Standard		IEC/EN 61000-6- 1/2/3/4, IEC/EN 62109- 1, IEC/EN 62109-2
Features
DC Connection	MC-4 mateable
AC Connection	IP65 rated plug
Display	LCD 240 × 160
Interface	RS485/RS232/Wiﬁ/LAN
