Product
Ground adjustable solar mounting
Specification
Wind Speed ：< 42m/s Snow load ：1.4 KN/m2 Standard ：AS1170.2
Degree ：0°-70 Arrangement ：Vertical or Horizontal Warranty：10 years
Installation Manual
Universal adjustable type solution.
Here, Semi kit: Post, Semi-circle bracket with main beam.
Fix Semi-circle kit on concrete foundation, and fix mounting rail upon main beam, and then fix panels by clamps.

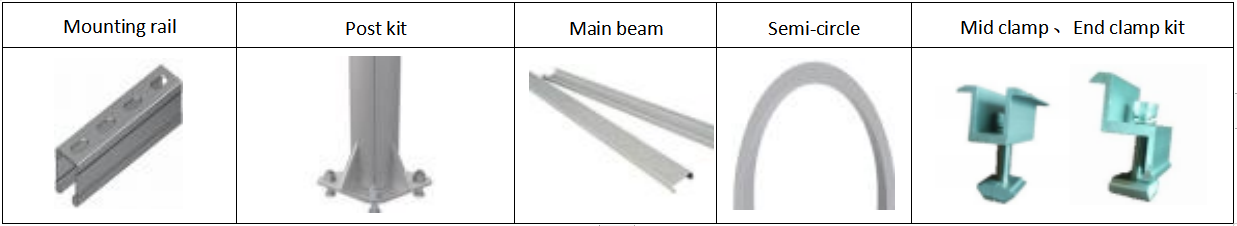

Main parts shown as bellow:

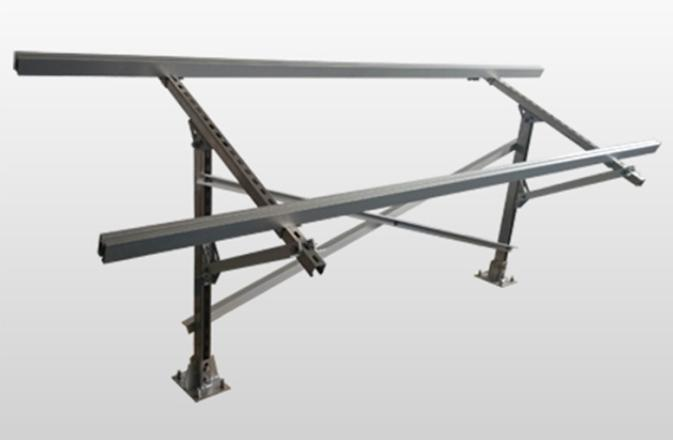

Adjustable triangle solar mounting system
Here, Yunkai Solar also provide another type with triangle structure to show our customer.
And it’s easy to adjust from 0 degree to 60 degree, just only move diagonal brace, we can do adjust easily.
Specification：
Wind Speed ：< 42m/s Snow load ：1.4 KN/m2 Standard ：AS1170.2
Degree ：0°-70 Arrangement ：Vertical or Horizontal Warranty：10 years
Installation Manual：
Universal adjustable type solution.
1. Install Post structure at first;
2. Install main beam and diagonal brace
3. Install mounting rail and back support

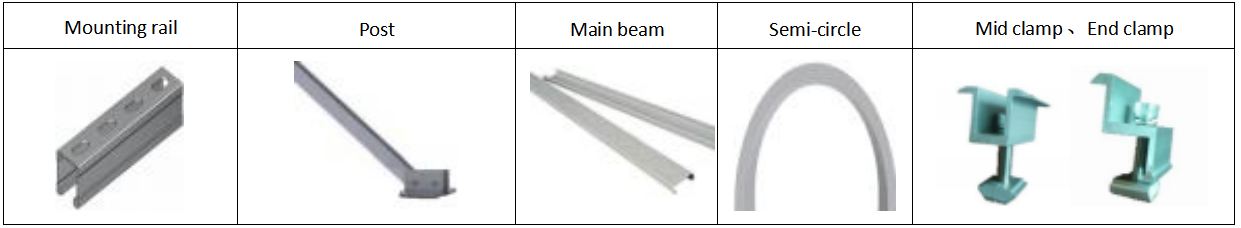

Main parts shown as bellow

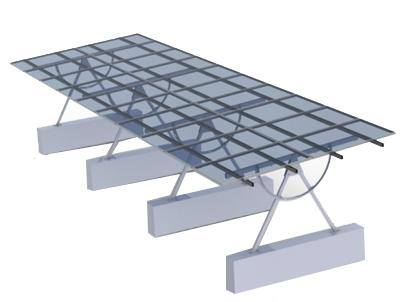

Semi-circle triangle structure adjustable solar mounting system
From Semi-circle structure to design, Chasun Solar also provide one structure which has much more strong than other adjustable structures.
Specification：
Wind Speed ：< 42m/s Snow load ：1.4 KN/m2 Standard ：AS1170.2
Degree ：0°-70 Arrangement ：Vertical or Horizontal Warranty：10 years
Installation Manual：
Universal adjustable type solution.
Here, Semi kit: 2 Posts, Semi-circle bracket with main beam. Fix Semi-circle kit on concrete foundation, and fix mounting rail upon main beam, and then fix panels by clamps.

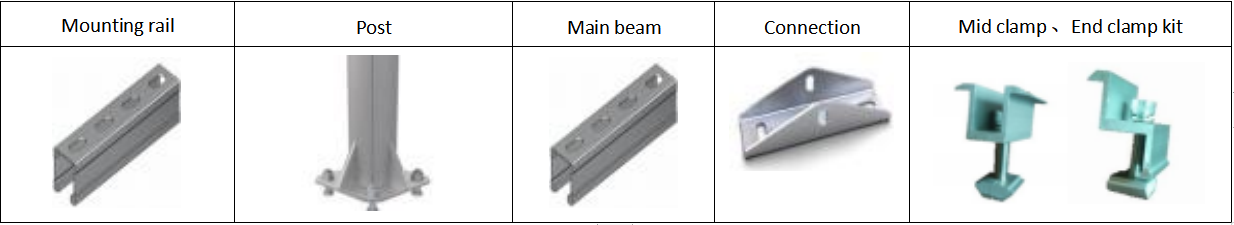

Main parts shown as bellow
