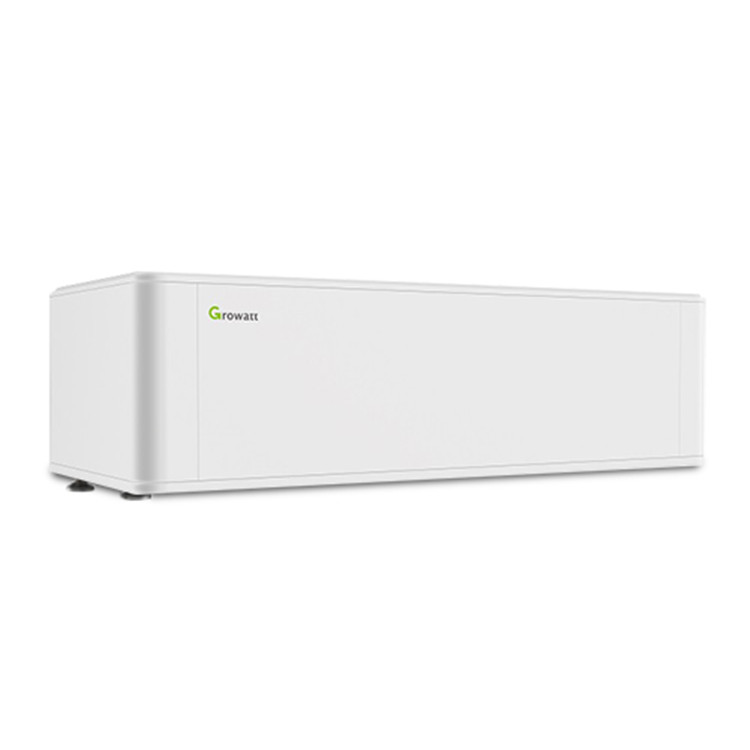

GROWATT Battery System ARK HV Battery
Remotely shutdown function
The ARK family offers adaptable energy solutions suitable for single or three-phase setups, hybrid or AC-coupled configurations, and battery-ready applications across diverse scenarios. Our commitment to safety, reliability, performance, and longevity sets us apart.
Features:
Cobalt-Free LiFePO4 Chemistry: We prioritize safety with Cobalt-free LiFePO4 chemistry, ensuring your peace of mind and the environment's well-being.
Comprehensive Protection: Multiple layers of protection, including Battery Management Systems (BMS) and inverters, guarantee extreme safety and reliability.
Modular Stacked Design: Our innovative design simplifies installation, making it a one-person job, saving you valuable time and cost.
Specifications:
Flexible Capacities: Choose from a range of capacities, from 7.68kWh to 25.6kWh, to meet your specific energy requirements.
Remote Firmware Upgrade: Stay up to date with remote firmware upgrades, ensuring your system is always optimized for peak performance.
Explore the ARK Family today, and empower your energy needs with versatile, eco-friendly, and high-performing solutions. We're not just a choice; we're your partner in sustainable energy.
Unlock the ARK advantage and experience energy solutions reimagined.
Smart Monitoring Platform
| Datasheet | ARK7.6H |
ARK10.2H |
ARK128H |
ARK15.3H |
ARK17.9H |
ARK20.4H |
ARK2aOH |
ARK25.6H |
System Dem o
| Battery Module |
ARK2.5H-A1 (2.56kWh, 51,2V, 28kg) |
|||||||
| Number of Modules |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
| Energy Capacity |
7.68kWh |
10.24kWh |
12.8kWh |
15.36kWh |
17.92kWh |
20.48kWh |
23.04kWh | 25.6kWh |
| Usable Capacity |
6.9kWh |
9.21 kWh |
11.52 kWh |
13.81 kWh |
16.12kWh |
18.43kWh |
20.73kWh | 23.04kWh |
| Standard Charge/Discharge Power*1 |
3.75kW |
5kW |
6.25kW |
7.5kW |
8.75kW |
lOkW |
11.25kW |
12.5kW |
| Nominal Voltage |
153.6V |
204.8V |
256V |
307.2V |
358.4V |
409,6V |
460.8V |
512V |
| Operating Voltage Range | 141.6-170.4V |
188.8~227.2V |
236-284V |
283.2-340.8V |
330.4-397.6V |
377.6~454.4V |
424.8-511.2V |
472-568V |
| Dimension (W/D/H)*2 | 65(y26Q725mm |
65(y26Q^05mm |
65Q26Cyi085rrm |
65(y26(yi26&Tm |
65(myi445tTm |
65CZ26(yi625nnm |
65Q26(yi805rrm |
65Q26Cyi985mm |
| Weight |
91kg |
118kg |
145kg |
172kg |
199kg |
226kg |
253kg |
280kg |
| General | ||||||||
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) | |
| Standard Charge/ Discharge Current | 25A/0.5C | |
| IPPratecflon | IP65 | |
| Installation | Wall-mounted or Floor installation*3 | |
| Operation TemperaLire | -10~50°C*4 | |
| Worranty | ICTfears | |
| BMS Controller |
HVC 60050-Al |
|
| Weight | 8 kg | |
| Communication Port | CAN | |
| Dimension(W/D/H) | 65(y26(yi85nm | |
| BMS Monitoring Rarameters | SOC, System voltage, current cell voltage,cell temperature, PCBA temperature measurement | |
| Certification & Licensing | IEC62619(Cell&Pack), CE, CEC, RCM, UN38.3 | |
| * i Depend on the max. battery charge/dlscharge power of the Inverter.*2 Include BMS controller*3 The battery base and bracket are optional for ARK HV battery*4 Battery discharge: -10°C 〜50°C, battery charge: 0°C 〜50°C
*ARK series battery has an EU model and a General model, ttie storage Inverters sold In European counties only work with EU model ARK battery. *2023 SHENZHEN GROWATT NEW ENERGY CO.,LTD All rights reserved. Subject to change without notice. |
||
