GROWATT Battery System ARK LV Battery
SUPERIOR PERFORMANCE LFP BATTERY
ARK family offers flexible energy options for single/three phase, hybrid/ac-coupled, and battery-ready solutions for different scenarios, which adopts Cobalt free LiFePO4 chemistry, together with multiple level protection from BMS and inverters to ensure its extreme safety and reliability, excellent performance, and a long lifespan. It features a modular stacked design and is lightweight for one-person installation to save time and cost.
● Flexible capacity options 2.56kWh to 25.6kWn
● Excellent safety of cobalt free LifePO4 battery

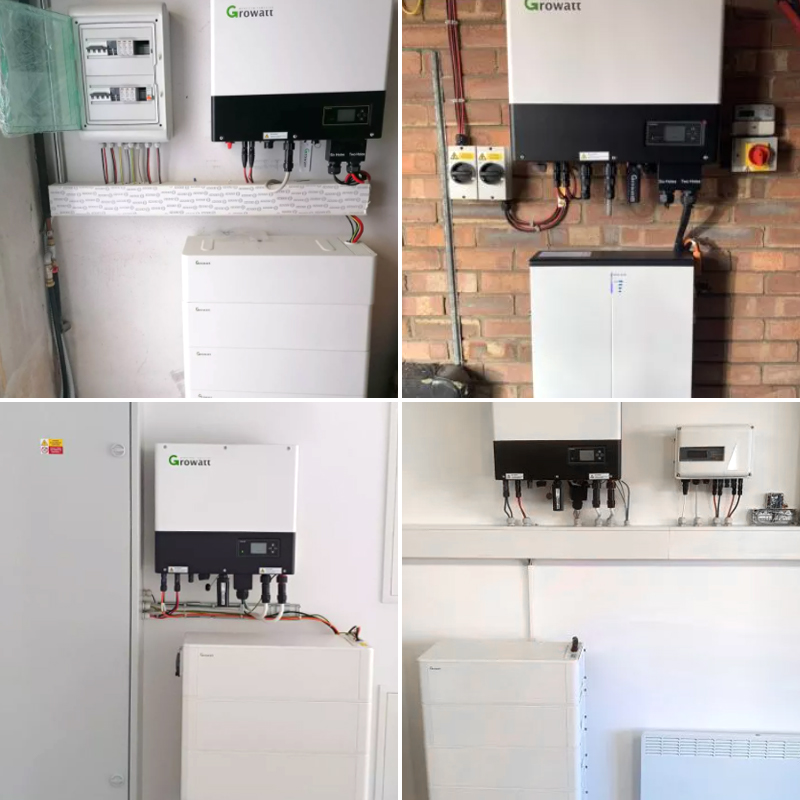

● Easy installation with modular and stacked design
● Remote firmware upgrade
Smart Monitoring Platform
|
Datasheet |
| ARK2.5L | |
| ARK5.1L | |
| ARK7.6L | |
| ARK10.2L | |
| ARK12^L | |
| ARK15.3L | |
| ARKIZ^L | |
| ARK20.4L | |
| ARK23.0L | |
ARK25.6L |

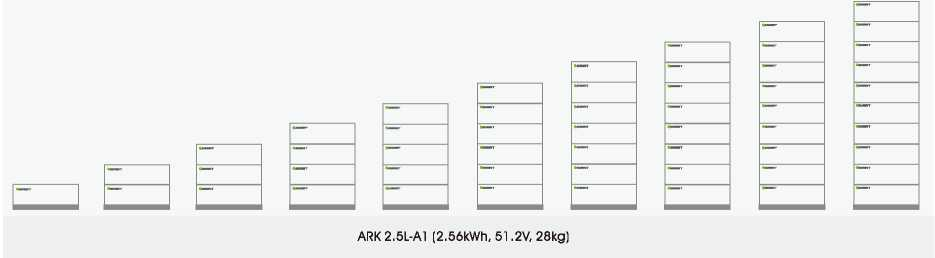

| Number of Modules |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
| Energy Capaclly |
2.56kWh |
5.12kWh |
7.68kWh |
10.24kWh |
12.8kWh |
15.35kWh |
17.92kWh |
20.48kWh |
23.04kWh |
25.64kWh |
| Usable Capacity |
2.30kWh |
4.6kWh |
6.9kWh |
9.21 kWh |
11.52kWh |
13.81 kWh |
16.12kWh |
18.43kWh |
20.73kWh |
23.04kWh |
| Standard Charge/Discharge Power*1Standard Charge/ Discharge Current |
1.25kW 25A |
2.5kW 50A |
3.75kW 75A |
5kW 100A |
5kW 10QA |
5kW 100A |
5kW 100A |
5kW 100A |
5kW 100A |
5kW 100A |
| Dimension (WD/H) | 65Q26(yi85rTrr |
65026(y365rrm |
65Q26Q545rTm |
65Cy26Q725crm |
65Cy26Q^05rrm |
65(y26(yi085rrm |
65Q26Qn265rrrr |
65(y26Cyi445nTn |
65026(71625mm |
65CV26(yi805nrm |
| Weight |
28kg |
56kg |
84kg |
112kg |
140kg |
168kg |
196kg |
224kg |
252kg |
280kg |
General
|
Battery Type |
Cobalt Free Lithium Iron Phosphate (LFP) |
|
Nominal Voltage |
51.2V |
|
Operaiing voltage Range |
47.2-56.8V |
|
IP Protection |
IP65 |
|
Installation |
Wall-mourrted or Floor Installatton*2 |
|
Operation Temperature |
-10~50°C*3 |
Features
|
BMS Monitoring Parameters |
SOC, System voltage, current cell voltage, cell temperature, PCBA temperature measurement |
|
Communication Port |
CAN |
Vfarranly: 5 yecrs^l 0 \eas \tes/opflonal
Certification IEC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
*1 Depend on the max. battery charge/discharge power of the inverter.
*2 Floor installation requires extra base (W/D/H=650/260/80mm)
*3 Battery discharge: -10°C ~ 50°C, battery charge: 0°C 〜50°C
*ARK series battery has an EU model and a General model, the storage inverters sold in European countries only work with EU model ARK battery. *2022 SHENZHEN GRCWKTT NEW ENERGY CO,,LTD All rights reserved. Subject to change wtthout notice.
