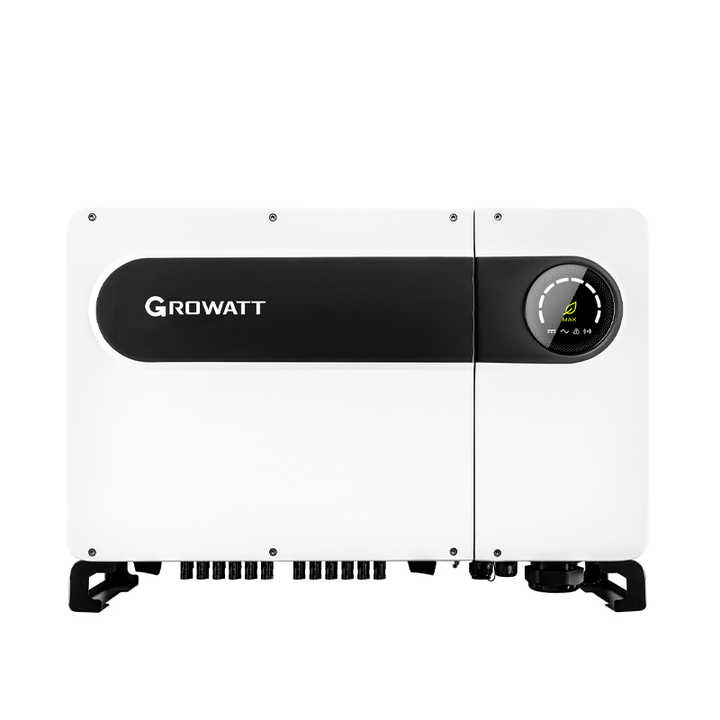

GROWATT Commercial & Industrial PV Inverter MAX 100-150KTL3-X LV/MV
Remotely shutdown function
All kinds of communication methods available
● ShineLink-X
● ShineWiFi-X/ShineLan-X/Shine4G-X
● ShineMaster
● SEM/SEM-D
Powerful free platforms for global customers
● 10 MPPTs fusefree design
● Smart I/V scan and diagnosis
● Intelligent string monitoring
● AC&DC type II SPD
● IP66 protection
Smart Monitoring Platform
|
Datasheet Input data (DC) |
MAX124KTL3-XMV |
MAX125KTL3-XMV |
MAX136KTL3-XMV |
MAX150KTL3-XMV |
|
Max. recommended PV power (for module STC) |
186000W |
187500W |
204000W |
204000W |
|
Max. DC voltage |
1100V |
|||
|
Start voltage |
195V |
|||
|
Nominal voltage |
720V |
|||
|
MPP voltage range |
180V- 1000V |
|||
|
No. of MPP trackers |
10 |
|||
|
No. of PV strings per MPP tracker |
2 |
|||
|
Max. input current per MPP tracker |
32A |
|||
|
Max. short-circuit current |
40A |
|||
|
Output data (AC) |
||||
|
AC nominal power |
124000W |
125000W |
136000W |
1500000W |
|
Max. AC apparent power |
136400VA |
137500VA |
150000VA |
165000VA |
|
Nominal AC voltage(range*) |
277V/480V 422-528VAC |
|||
|
AC grid frequency (range*) |
50/60 Hz (45~55Hz/59.5-60.5 Hz) |
|||
|
Max. output current |
164. 1A |
165.4A |
179.9A |
198.5A |
|
Adjustable power factor |
0.8leading ...0.8lagging |
|||
|
THDi |
<3% |
|||
|
AC grid connection type Efficiency |
3W/N/PE |
|||
|
Max.efficiency |
99.00% |
|||
|
European efficiency |
98.50% |
|||
|
MPPT efficiency |
99.90% |
|||
|
Protection devices |
||||
|
DC reverse polarity protection |
Yes |
|||
|
DC switch |
Yes |
|||
|
AC/DC surge protection |
Type II / Type II |
|||
|
Insulation resistance monitoring |
Yes |
|||
|
AC short-circuit protection |
Yes |
|||
|
Ground fault monitoring |
Yes |
|||
|
String detection |
Yes |
|||
|
Anti PID function |
Opt |
|||
|
Arc fault detection (AFCI) |
Opt |
|||
|
General data |
||||
|
Dimensions (W / H / D) |
970/640/345mm |
|||
|
Weight |
84kg |
|||
|
Operating temperature range |
–30°C ... +60°C |
|||
|
Nighttime power consumption |
< 1W |
|||
|
Topology |
Transformerless |
|||
|
Cooling |
Smart Cooling |
|||
|
Protection degree |
IP66 |
|||
|
Relative humidity |
0~100% |
|||
|
Altitude |
4000m |
|||
|
DC connection |
H4/MC4 |
|||
|
AC connection |
OT Terminal connectors (Max. 240mm²) |
|||
|
Display |
LED/WIFI+APP |
|||
|
Interfaces: RS485 / USB /PLC |
Yes/Yes /Optional |
|||
|
Warranty: 5 years / 10 years |
Yes /Optional CE, IEC62116, IEC61727, ROHS, UL1741, IEEE1547 |
|||
AC voltage range and frequency range may vary depending on specific country grid standards. This means that the regulations for AC voltage and frequency may differ in different countries and regions. These differences may involve aspects such as grid stability, security, and energy utilization efficiency. Therefore, when designing and using power equipment, it is necessary to determine the appropriate voltage and frequency range according to the grid standards of the target market or country to ensure the normal operation and performance of the equipment.
