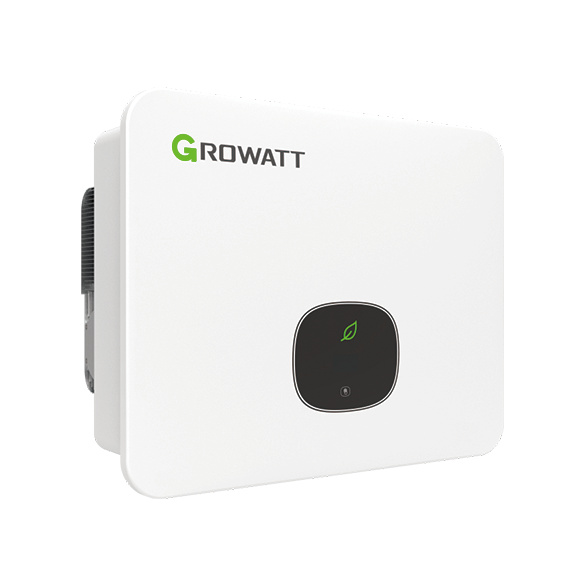

GROWATT Commercial & Industrial PV Inverter MID 25-40KTL3-X Suitable for Europe
Remotely shutdown function
All kinds of communication methods available
● ShineLink-X
● ShineWiFi-X/ShineLan-X/Shine4G-X
● ShineMaster
● SEM
Powerful free platforms for global customers
GROWATT Monitoring Platform
● The maximum efficiency is up to 98.8%
● Touch key and OLED display
● String monitoring
● AC&DC type II SPD
● AFCI optional
Primary Specification
|
Datasheet |
MID25KTL3-X1 |
MID30KTL3-X |
MID33KTL3-X |
MID36KTL3-X |
MID40KTL3-X |
|
Input data (DC) |
|||||
|
Max. recommended PV power (for module STC) |
37500W |
45000W |
49500W |
54000W |
60000W |
|
Max. DC voltage |
1100V |
||||
|
Start Voltage |
250V |
||||
|
Normal Voltage |
600V |
||||
|
MPPT voltage range |
200- 1000V |
||||
|
No. of MPP trackers |
3 |
3 |
3 |
4 |
4 |
|
No. of PV strings per MPP tracker |
2 |
||||
|
Max.input current per MPP tracker |
26A |
||||
|
Max. short-circuit current per MPP tracker |
32A |
||||
|
Output data (AC) |
|||||
|
AC nominal power |
25000W |
30000W |
33000W |
36000W |
40000W |
|
Max. AC apparent power |
27700VA |
33300VA |
36600VA |
39600VA |
44000VA |
|
Nominal AC voltage(range*) |
220 |
V/ 380V, 230V/400V ( 340-44 |
0V) |
||
|
AC grid frequency(range*) |
50/60 Hz (45-55Hz/55-65 Hz) |
||||
|
Max. output current |
40A |
50.5A |
55.5A |
60.0A |
66.6A |
|
Adjustable power factor |
0.8leading …0.8lagging |
||||
|
THDi |
<3% |
||||
|
AC grid connection type Efficiency |
3W+ N + PE |
||||
|
Max.efficiency |
98.8% |
||||
|
European efficiency |
98.5% |
||||
|
MPPT efficiency |
99.9% |
||||
|
Protection devices |
|||||
|
DC reverse polarity protection |
Yes |
||||
|
DC Switch |
Yes |
||||
|
AC/DC surge protection |
Type II / Type II |
||||
|
Insulation resistance monitoring |
Yes |
||||
|
AC short-circuit protection |
Yes |
||||
|
Ground fault monitoring |
Yes |
||||
|
Grid monitoring |
Yes |
||||
|
Anti-islanding protection |
Yes |
||||
|
Residual-current monitoring unit |
Yes |
||||
|
String monitoring |
Yes |
||||
|
AFCI protection |
Optional |
||||
|
General data |
|||||
|
Dimensions (W / H / D) |
580/435/230mm |
||||
|
Weight |
29.5kg |
29.5kg |
29.5kg |
30.5kg |
30.5kg |
|
Operating temperature range |
–25°C ... +60°C |
||||
|
Nighttime power consumption |
< 1W |
||||
|
Topology |
Transformerless |
||||
|
Cooling |
Smart air cooling |
||||
|
Protection degree |
IP66 |
||||
|
Relative humidity |
0- 100% |
||||
|
Altitude |
4000m |
||||
|
DC connection |
H4/MC4(Optional) |
||||
|
AC connection |
Cable gland+OT terminal |
||||
|
Display |
OLED+LED/WIFI+APP |
||||
|
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN |
Yes/Yes/Optional/Optional/Optional/Optional |
||||
|
Warranty: 5 years / 10 years |
Yes/Optional |
||||
|
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116,IEC61727, IEC 60068, IEC 61683, CEI0-21, CEI0-16, N4105, TOR Erzeuger, G98/G99, G100, AS/NZS 3100, AS4777, UNE217001, UNE206007, PO12.2, KSC8565 |
|||||
