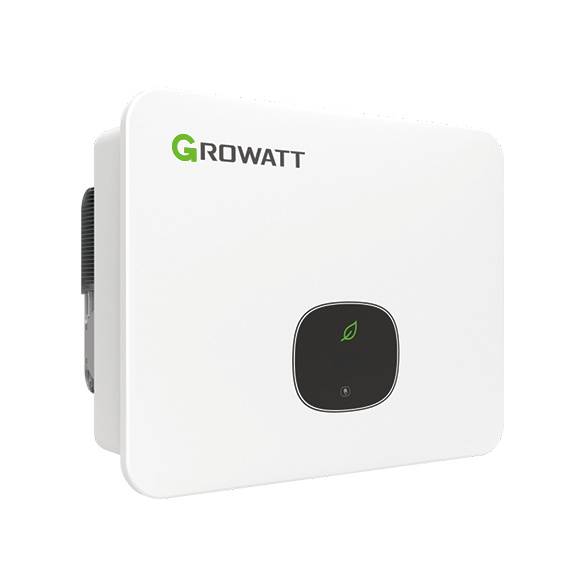

GROWATT Commercial & Industrial PV Inverter MID 30-50KTL3-X2
Remotely shutdown function
The Growatt MID generation of photovoltaic inverters is ideal for installations as it is compact and easy to install, for indoor applications.The maximum effciency is up to 98.85，AFCI function optional, self-consumption monitoring, touch key and OLED display.
● Maximum string input current 16A
● Type II SPD on DC and AC side
● I/V curve scanning
● Intelligent string monitoring
● AFCI function optional
Primary Specification
|
Datasheet |
MID30KTL3-X2-1 |
MID33KTL3-X2 |
MID36KTL3-X2 |
MID40KTL3-X2 |
MID50KTL3-X2 |
|
|
Input data (DC) |
||||||
|
Max. recommended PV power (for module STC) |
45000W |
49500W |
54000W |
60000W |
75000W |
|
|
Max. DC voltage |
1100V |
|||||
|
Start Voltage |
200V |
|||||
|
Normal Voltage |
600V |
|||||
|
MPPT voltage range |
200- 1000V |
|||||
|
No. of MPP trackers |
3 |
3 |
3 |
4 |
4 |
|
|
No. of PV strings per MPP tracker |
2 |
|||||
|
Max.input current per MPP tracker |
32A |
|||||
|
Max. short-circuit current per MPP tracker |
40A |
|||||
|
Output data (AC) |
||||||
|
AC nominal power |
30000W |
33000W |
36000W |
40000W |
50000W |
|
|
Max. AC apparent power |
30000VA |
36600VA |
40000VA |
44400VA |
55500VA |
|
|
Nominal AC voltage (range*) |
22 |
0V/ 380V, 230V/400V ( 340-4 |
40V) |
|||
|
AC grid frequency (range*) |
50/60 Hz (45-55Hz/55-65 Hz) |
|||||
|
Max. output current |
45.5A |
55.5A |
60.6A |
67.3A |
84.1A |
|
|
Adjustable power factor |
0.8leading …0.8lagging |
|||||
|
THDi |
<3% |
|||||
|
AC grid connection type Efficiency |
3W+ N + PE |
|||||
|
Max.efficiency |
98.8% |
|||||
|
European efficiency |
98.5% |
|||||
|
MPPT efficiency |
99.9% |
|||||
|
Protection devices |
||||||
|
DC reverse polarity protection |
Yes |
|||||
|
DC Switch |
Yes |
|||||
|
AC/DC surge protection |
Type II / Type II |
|||||
|
Insulation resistance monitoring |
Yes |
|||||
|
AC short-circuit protection |
Yes |
|||||
|
Ground fault monitoring |
Yes |
|||||
|
Grid monitoring |
Yes |
|||||
|
Anti-islanding protection |
Yes |
|||||
|
Residual-current monitoring unit |
Yes |
|||||
|
String monitoring |
Yes |
|||||
|
AFCI protection |
Optional |
|||||
|
General data |
||||||
|
Dimensions (W / H / D) |
580/435/230mm |
|||||
|
Weight |
31kg |
31kg |
31kg |
37kg |
37kg |
|
|
Operating temperature range |
–25°C ... +60°C |
|||||
|
Nighttime power consumption |
< 1W |
|||||
|
Topology |
Transformerless |
|||||
|
Cooling |
Smart air cooling |
|||||
|
Protection degree |
IP66 |
|||||
|
Relative humidity |
0- 100% |
|||||
|
Altitude |
4000m |
|||||
|
DC connection |
H4/MC4(Optional) |
|||||
|
AC connection |
Cable gland+OT terminal |
|||||
|
Display |
OLED+LED/WIFI+APP |
|||||
|
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN |
Yes/Yes/Optional/Optional/Optional/Optional |
|||||
|
Warranty: 5 years / 10 years |
Yes/Optional |
|||||
|
CE, VDE0126, Greece, EN50549- 1, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger, G98/G99, G100, UNE217001, UNE206007, PO12.2 |
||||||
* The AC voltage range and frequency range may vary depending on specific country grid standard .
All specifications are subject to change without notice .
