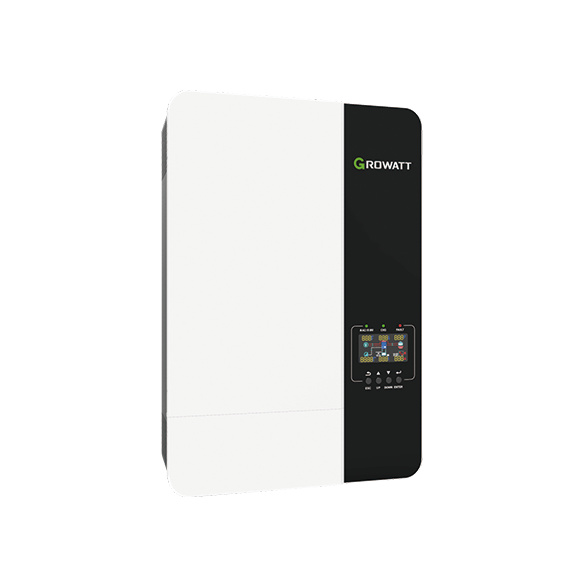

GROWATT Off-Gird Storage Inverter SPF 3000-5000 ES
Remotely shutdown function
All kinds of communication methods available
● ShineGPRS-F
● ShineWiFi-F
Powerful free platforms for global customers
monitoring platform
● Integrated MPPT charge controller
● Equalization charging function
● Work with or without battery
● PV input voltage up to 450VDC
● Configurable grid or solar input priority
● Optional WIFI/GPRS rmote monitoring
● Support parallel operation for capacity expansion up to 30kW
● PV and grid power the load jointly if PV energy is unsufficient
● Flexibly schedule the Inverter charging and discharging time
Primary Specification
| Datasheet |
SPF 3000 ES |
SPF 3500 ES |
SPF 5000 ES |
| Battery Vbltage | 48VDC | ||
| Battery Type | Lithium/Lead-acid | ||
| INVERTER OUTPUT | |||
| Rated Power |
3000WV 3000W |
3500WV 3500W |
5000W/ 5000W |
| Parallel Capability |
NO |
Yfes, 6 units maximurri |
|
| AC Voltage Regulation (Battery Mode) |
230VAC ±5%@ 50/60HZ |
||
| Surge Power |
60000VA |
7000W |
10000VA |
| Efficiency (Peak) |
93% |
||
| Waveform |
Pure sine wave |
||
| Transfer Time |
1 Oms iypical 20ms Max |
||
| SOLAR CHARGER | |||
| Maximum PV Array Power |
4000W |
4500W |
6000W |
| MPPT Range @ Operating Voltage | 120VDC -430VDC | ||
| Number of Independent MPP Trackers/ Strings Per MPP Tracker | 1/1 | ||
| Maximum PV Array Open Circuit Voltage | 45CMDC | ||
| Maximum Solar Charge Current |
60A |
80A |
100A |
| AC CHARGER | |||
| Charge Current |
60A |
80A |
|
| AC Input Voltage | 230 WC | ||
| Selectable Voltage Range |
170-280 VAC (For Personal Computers); 90-280 VftC (For Home Appliances) |
||
| Frequency Range |
50Hz/60Hz (Auto sensing) |
||
| PHYSICAL | |||
| Protection Degree |
IP20 |
||
| Dimension (W/H/D) |
330/485/135mm |
||
| Net Weight |
11.5kg |
11.5kg |
12kg |
| OPERATING ENVIRONMENT | |||
| Humidity |
5% to 95% Relative Humldlty(Non-condenslng) |
||
| Attitude | <2000m | ||
| Operating Temperature | 0°C - 55°C | ||
| Storage Temperature |
-15°C -60°C |
||
