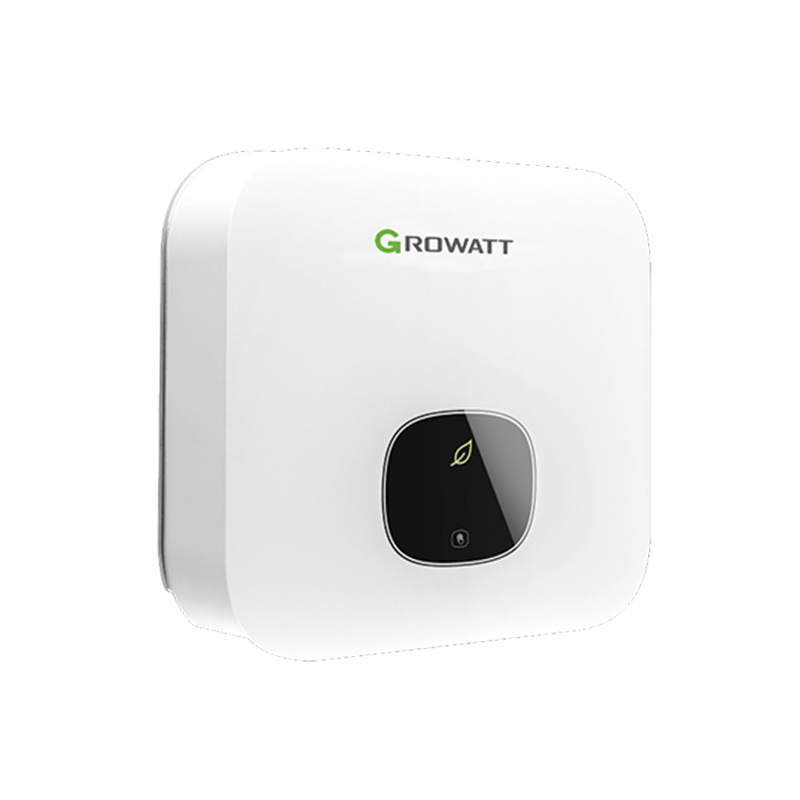

GROWATT Residential PV Inverter MIN 2500-6000TL-X/XH
Remotely shutdown function
All kinds of communication methods available
Shine WiFi-x
Shine4G-x
ShineLan-x
ShineLink-x
Powerful free platforms for global customers
Growatt Monitoring Platform
● Max. efficiency 98.4%
● Dual MPP trackers
● Type II SPD on DC side
● Battery ready, future proof
24h self-consumption monitoring
Primary Specification
|
Datasheet |
MIN 2500TL-X |
MIN 3000TL-X |
MIN 3600TL-X |
MIN 4200TL-X |
MIN 4600TL-X |
MIN 5000TL-X |
MIN 6000TL-X |
|
|
Input Data (DC) |
||||||||
|
Max. recommended PV power (for module STC) |
3500W |
4200W |
5040W |
5880W |
6440W |
7000W |
8100W |
|
|
Max. DC voltage |
500V |
500V |
550V |
550V |
550V |
550V |
550V |
|
|
Start voltage |
100V |
|||||||
|
Nominal voltage |
360V |
|||||||
|
MPP voltage range |
80V-500V |
80V-500V |
80V-550V |
80V-550V |
80V-550V |
80V-550V |
80V-550V |
|
|
No. of MPP trackers |
2 |
|||||||
|
No. of PV strings per MPP tracker |
1 |
|||||||
|
Max. input current per MPP tracker |
13.5A* |
|||||||
|
Max. short-circuit currentper MPP tracker |
16.9A |
|||||||
|
Output data (AC) |
||||||||
|
AC nominal power |
2500W |
3000W |
3600W |
4200W |
4600W |
5000W |
6000W |
|
|
Max. AC apparent power |
2500VA |
3000VA |
3600VA |
4200VA |
4600VA |
5000VA |
6000VA |
|
|
Nominal AC voltage (range*) |
230V (180-280V) |
|||||||
|
AC grid frequency (range*) |
50/ |
60 Hz (45-55Hz/55-65 |
Hz) |
|||||
|
Max. output current |
11.3A |
13.6A |
16A |
19A |
20.9A |
22.7A |
27.2A |
|
|
Adjustable power factor |
0 |
.8leading…0 .8laggin |
g |
|||||
|
THDi |
<3% |
|||||||
|
AC grid connection typeEfficiency |
Single phase |
|||||||
|
Max.efficiency |
98.2% |
98.2% |
98.2% |
98.4% |
98.4% |
98.4% |
98.4% |
|
|
European efficiency |
97. 1% |
97. 1% |
97.2% |
97.5% |
97.5% |
97.5% |
97.5% |
|
|
MPPT efficiency |
99.9% |
|||||||
|
Protection Devices |
||||||||
|
DC reverse polarity protection |
yes |
|||||||
|
DC switch |
yes |
|||||||
|
AC/DC surge protection |
Type III / Type II |
|||||||
|
Insulation resistance monitoring |
yes |
|||||||
|
AC short-circuit protection |
yes |
|||||||
|
Ground fault monitoring |
yes |
|||||||
|
Grid monitoring |
yes |
|||||||
|
Anti-islanding protection |
yes |
|||||||
|
Residual-current monitoring unit |
yes |
|||||||
|
AFCI protectionGeneral Data |
Optional |
|||||||
|
Dimensions (W / H / D) |
375/350/160mm |
|||||||
|
Weight |
10.8kg |
|||||||
|
Operating temperature range |
–25°C ... +60°C |
|||||||
|
Noise emission (typical) |
≤35 dB(A) |
|||||||
|
Nighttime power consumption |
< 1W |
|||||||
|
Topology |
Transformerless |
|||||||
|
Cooling |
Natural convection |
|||||||
|
Protection degree |
IP65 |
|||||||
|
Relative humidity |
0- 100% |
|||||||
|
Altitude |
4000m |
|||||||
|
DC connection |
H4/MC4(Optional) |
|||||||
|
AC connection |
Connector |
|||||||
|
Display |
OLED+LED/WIFI+APP |
|||||||
|
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN |
Yes/Yes/Optional/Optional/Optional /Optional |
|||||||
|
Warranty: 5 years / 10 years |
Yes /Optional CE, IEC62109, VDE0126- 1- 1, AS4777, AS/NZS 3100, VDE-AR-N4105, CQC, IEC61683, IEC60068, IEC61727, IEC62116, INMETRO |
|||||||
* Only the latest version with max. input current 13.5A per MPP tracker, for details please contact Growatt.
* The AC voltage and frequency range may vary depending on specific country grid standard.
