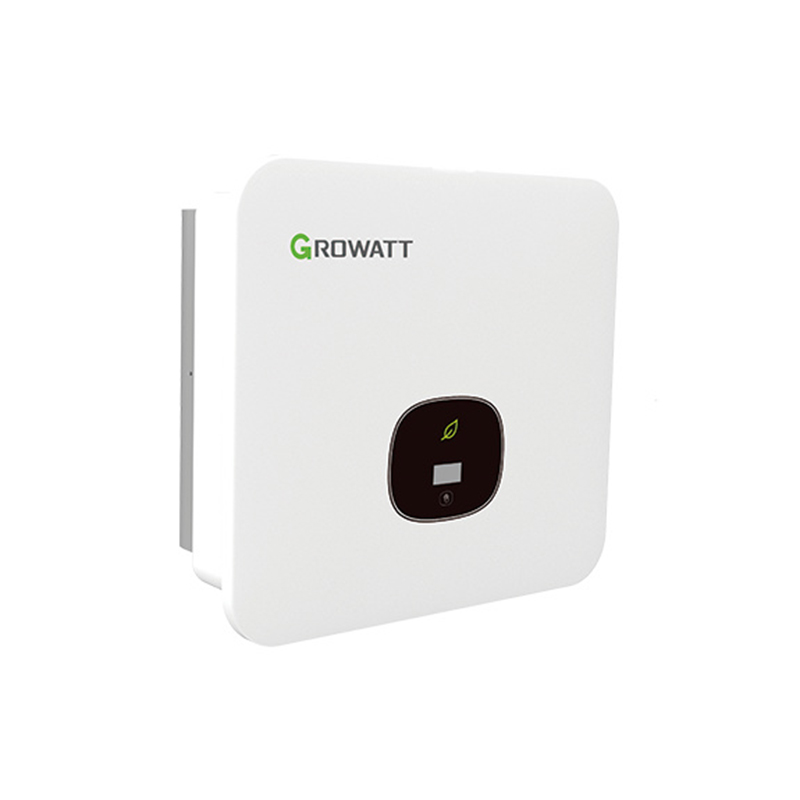

GROWATT Residential PV Inverter MIN 7000-10000TL-X
Remotely shutdown function
All kinds of communication methods available
Shine WiFi-x
Shine4G-x
ShineLan-x
ShineLink-x
Powerful free platforms for global customers
Growatt Monitoring Platform
● Maximum efficiency 98.1%
● 2/3 MPP trackers
● Type II SPD on DC side
● Supports export control
● Touch key and OLED display
Primary Specification
|
Datasheet |
MIN 7000TL-X(E) |
MIN 8000TL-X(E) |
MIN 9000TL-X |
MIN10000TL-X |
|
|
Input data (DC) |
|
|
|
|
|
|
Max. recommended PV power (for module STC) |
12000W |
12000W |
13500W |
15000W |
|
|
Max. DC voltage |
|
60 |
0V |
|
|
|
Start voltage |
|
10 |
0V |
|
|
|
Nominal voltage |
|
36 |
0V |
|
|
|
MPP voltage range |
|
60-5 |
50V |
|
|
|
No. of MPP trackers |
2 |
|
3 |
|
|
|
No. of PV strings per MPP tracker |
1/2 |
1/1/2 |
|||
|
Max. input current per MPP tracker |
13.5A/27A |
13.5A/13.5A/27A |
|||
|
Max. short-circuit current per MPP tracker |
16.9A/33.8A |
16.9A/16.9A/33.8A |
|||
|
Output data (AC) |
|
||||
|
AC nominal power |
7000W |
8000W |
9000W |
10000W |
|
|
Max. AC apparent power |
7000VA |
8000VA |
9000VA |
10000VA |
|
|
Nominal AC voltage(range*) |
Default:240V split-phase, optional:208V & 240V single phase , 183-228@208V 211-264V@240V |
||||
|
AC grid frequency(range*) |
|
50/60 Hz (45-55Hz/59.5-60.5Hz) |
|||
|
Max. output current |
33.5A |
38.3A |
43A |
45.5A |
|
|
Adjustable power factor |
0.8leading…0.8lagging |
||||
|
THDi |
<3% |
||||
|
AC grid connection type Efficiency |
Single phase |
||||
|
Max.efficiency |
98 1% |
||||
|
European efficiency |
97.3% |
97.6% |
|||
|
MPPT efficiency |
99.5% |
||||
|
Protection devices |
|
||||
|
DC reverse polarity protection |
Yes |
||||
|
DC switch |
Yes |
||||
|
DC/AC surge protection |
Type II / Type III |
||||
|
Insulation resistance monitoring |
Yes |
||||
|
AC short-circuit protection |
Yes |
||||
|
Ground fault monitoring |
Yes |
||||
|
Grid monitoring |
Yes |
||||
|
Anti-islanding protection |
Yes |
||||
|
Residual-current monitoring unit |
Yes |
||||
|
AFCI protection General data |
Yes |
||||
|
Dimensions (W / H / D) |
425/387/180mm |
||||
|
Weight |
18.2kg |
||||
|
Operating temperature range |
–25 °C ... +60 °C |
||||
|
Nighttime power consumption |
< 1W |
||||
|
Topology |
Transformerless |
||||
|
Cooling |
Natural convection |
||||
|
Protection degree |
IP66 |
||||
|
Relative humidity |
0- 100% |
||||
|
Altitude |
4000m |
||||
|
DC connection |
H4/MC4(Optional) |
||||
|
AC connection |
Cable gland +OT terminal |
||||
|
Display |
OLED+LED/WIFI+APP |
||||
|
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN |
Yes/Yes/Optional/Optional/Optional /Optional |
||||
|
Warranty: 5 years / 10 years |
Yes/Optional |
||||
|
CE, IEC 621 16, IEC 61727, IEC62109, INMETRO,AS4777, UL1741, IEEE1547 |
|||||
* The AC voltage and frequency range may vary depending on specific country grid standard .
All specifications are subject to change without notice .
