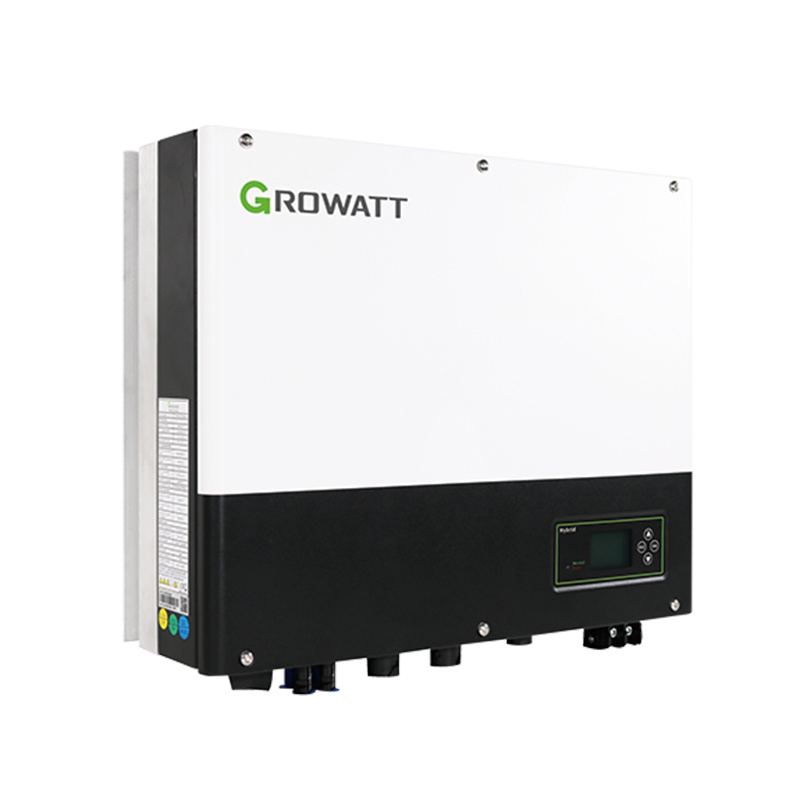

GROWATT residential Storage Inverter SPH 3000-6000TL BL-UP Suitable for Europe
Remotely shutdown function
All kinds of communication methods available
● ShineLink-X
● ShineWiFi-X
● Shine4G-X
● ShineMaster
Powerful free platforms for global customers
● Smart load management via dry contact
● UPS function, 10ms transition
● Scalable system configuration
● VPP interface ready
● Remote smart O&M
● 2 DC/AC Ratio
Primary Specification
|
Datasheet |
SPH3000TL BL-UP |
SPH3600TL BL-UP |
SPH40007L BL-UP |
SPH46007L BL-UP |
SPH5000TL BL-UP |
SPH60007L BL-UP |
|
Input data(PV) |
||||||
|
Max. recommended PV power (for module STC) |
6500W |
7500W |
8500W |
9000W |
9500W |
10600W |
|
Max. DC voltage |
550V |
|||||
|
Start voltage |
120V |
|||||
|
MPP vottage range/ Nominal \fortage |
120-550W370V |
|||||
|
No. of MPP trackers |
2 |
|||||
|
No. of PV strings per MPP tracker |
||||||
|
Max. Input current per MPP tracker |
13.5A |
|||||
|
Max. short-cfcdt curent per LPP tracker |
16.9A |
|||||
|
Output data(AC) |
||||||
|
AC nominal power |
3000W |
3680W |
4000W |
4600W |
5000W |
6000W |
|
Rated AC apparent power |
3000W |
360M |
4000W |
460CNA |
5000VA |
6000W |
|
Nominal AC voltage (range) |
230VZ(180Vac-260Vac) |
|||||
|
AC grid frequency (range) |
50H?/60Hz (45Hz-55H?/55Hz-65Hz) |
|||||
|
Rated, output current |
13.5A |
16A |
17.5A |
20A |
22A |
27A |
|
Adjustable power factor |
0.8leadlng.. .0.8lagglng |
|||||
|
THDi |
<3% |
|||||
|
AC grid connection type |
Single phase |
|||||
|
Battery data (DC) |
||||||
|
Battery voltage range |
42-59V |
|||||
|
Max chagng and dschargrg cunent |
66A |
75A |
85A |
85A |
85A |
85A |
|
ConHnuous charging and discharging power |
3000W |
3680W |
4000W |
4000W |
4000W |
4000W |
|
Type of battery |
Lithium /Lead-acid |
|||||
|
Backup power(AC) |
||||||
|
Max. AC output power |
3000W |
3680W |
4000W |
4000W |
4000W |
4000W |
|
Rated output current |
13A |
16A |
17.5A |
17.5A |
17.5A |
17.5A |
|
Nominal AC output voltage |
230Vbc |
|||||
|
Nominal AC output frequency |
50/60HZ |
|||||
|
THDv |
<3% |
|||||
|
Switch time |
<10ms |
|||||
|
Efficiency |
||||||
|
MAX. efficiency |
97.20% |
97.20% |
97.30% |
97.40% |
97.50% |
97.60% |
|
European efficiency |
97% |
97% |
97.10% |
97.10% |
97.20% |
97.20% |
|
MPPT efficiency |
N99.5% |
|||||
|
Protection devices |
||||||
|
DC switch |
||||||
|
DC reverse polarity protection |
||||||
|
AC/DC surge protection |
||||||
|
Battery reverse protection |
||||||
|
AC short-circuit protection |
||||||
|
Ground fault monitoring |
||||||
|
Grid monitoring |
||||||
|
Anti-islanding protection |
||||||
|
Residual-current monitoring unit |
||||||
|
Insulation resistance monitoring |
||||||
|
General data |
||||||
|
Dimensions (W/H/D) |
565/456/188mm |
|||||
|
Weight |
27kg |
|||||
|
Opercrting temperature range |
-25°C. |
.+60°C |
||||
|
Nighttime power consumpflon |
< 10W |
|||||
|
Topology |
Transformerless |
|||||
|
Cooling |
Natural |
|||||
|
Protection degree |
IP65 |
|||||
|
Relative humidity |
0-100% |
|||||
|
Attitude |
2000m |
|||||
|
PV DC Connection |
H4/MC4(Optional) |
|||||
|
Battery DC Connection |
OT Terminal |
|||||
|
AC connection |
Connector |
|||||
|
Display |
LCD+LED |
|||||
|
Interfaces: RS485/CAN/USB |
间 |
|||||
|
Monitor: RF/WIFI/GPRS |
Optional |
|||||
|
Warraniy: 5 years /10 years |
Vtes/Optional |
|||||
|
CE, IEC62109,G9fiiG99, VDE0126-1 -1, AS4777, CEI0-21, VD&ARWlO5,UIEC15-712, EN50549, IEC61727, IEC62116, IEC62040,ClQH1, g097-2-1 |
||||||
* The AC voltage range and frequency range may vary depending on specific country grid standard. All speclflcafions are subject to change without notice.
