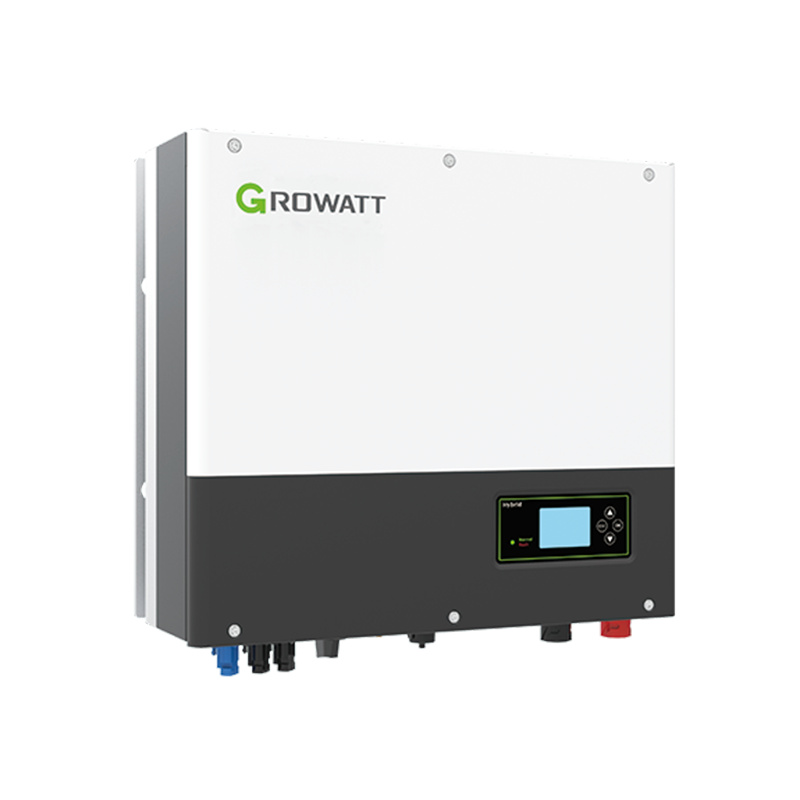

GROWATT Residential Storage Inverter SPH 4000-10000TL3 BH-UP
Remotely shutdown function
All kinds of communication methods available
● ShineLink-X
● ShineWiFi-X
● ShineMaster
● Shine4G-X
Powerful free platforms for global customers
monitoring platform
● 100% three-phase imbalance output
● Smart phase-level power export limitation
● Wide battery voltage 100-550V
● UPS function, 10ms transition
● Scalable system configuration
● VPP interface ready
● DC/AC type II SPD
● 1.5 DC/AC Ratio
Primary Specification
| Datasheet | SPH 4000TL3 BHUP | SPH 5000TL3 BHUP | SPH 6000TL3 BHUP | SPH 7000TL3 BHUP | SPH 8000TL3 BHUP | SPH 10000TL3 BHUP |
| Input data(PV) | ||||||
| Max recommended PV power (for modue SIC) |
6000W | 7500W | 9000W | 10500W | 12000W | 15000W |
| Max. DC volage | 1000 | |||||
| Start voltage | 120V | |||||
| MPP yohage rangp | 120V-1000V/600V | |||||
| No. of MPP tockers | 2 | |||||
| No. of PV stings per MPP hocker | 1 | |||||
| Max input cument per MPP ttocker | 13.5A | |||||
| Max. shot-cicuit cument per MPP tocker | 16.9A | |||||
| Output data(AC) | ||||||
| AC nomindl power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W |
| Max.AC apparent powe | 4000VA | 5000VA | 6000VA | 7000VA | 8000VA | 10000NA |
| Nominal AC votage [iange"] | 230V/400V [310~476V] | |||||
| AC gid tequency (iange) | 50Hz/60Hz(45H-55Hz/55Hz-65Hz) | |||||
| Max. output cument | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.2A |
| Adjustable power foctor | 0.8eoding...0.8loggng | |||||
| THDi | <3% | |||||
| AC gid connection rpe | 3W+N+PE | |||||
| Battery data (DC) | ||||||
| Battery volloge range | 100~550V | |||||
| Max charging and dischanging cunert | 25A | |||||
| Coninuous chagng and dschagng power | 4000W | 5000W 6000W | 7000W | 8000W | 10000W | |
| Type of batteny | ithium/lead-acid | |||||
| Backup power(AC) | ||||||
| Max. AC output power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W |
| Max. AC apparent power | 4000VA | 5000VA | 6000VA | 7000VA | 8000NA | 10000VA |
| Max. output cument | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.2A |
| Nomindl AC output vditoge | 230V/400V | |||||
| Nominal AC output frequency | 50/60HZ | |||||
| THDV | <3% | |||||
| Swich time | <10ms | |||||
| Efficjency | ||||||
| MAX. efficiency | 97.6% | 97.8% | 98.0% | 98.2% | 98.2% | 98.2% |
| Eurgpean eficiency | 97.0% | 97.2% | 97.3% | 97.4% | 97.4% | 97.5% |
| Euro battery discharge eficiency | 97.4% | |||||
| MPPI effclency | 99.9% | |||||
| Protection devices | ||||||
| DC switch | Yes | |||||
| DC everse polaiy protection | Yes | |||||
| AC/DC surge potection | Typell | |||||
| Battery reverse protection | Yes | |||||
| AC short cicuit protection | Yes | |||||
| Ground fout moniaing | Yes | |||||
| Gid monitoing | Ves | |||||
| Anfiskanding potection | Yes | |||||
| Residudl-curent moritoing unit | Yes | |||||
| Insulation resstance monitoing | Yes | |||||
| General data | ||||||
| Dmensions (W/H/D) | 505/453/198mm | |||||
| Weight | 30kg | |||||
| Operaing temperahure range | -25℃..+60℃ | |||||
| Nighitime power consumption | <13W | |||||
| Topology | Tiansformeiless | |||||
| Cooing | Natud | |||||
| Protection degree | IP65 | |||||
| Relative humidity | 0~100% | |||||
| Alitude | 3000m | |||||
| DC connection | H4/MC4(Opicnal) | |||||
| AC connection | Connector | |||||
| Display | LCD+LED | |||||
| Interfaces: RS485/CANUSB | Yes | |||||
| Monitar:RF/MFVGPRS | Optiond | |||||
| Wamanty. 5 yeas / 10 yeas Yes/Optional | ||||||
| CE,IEC62109,IEC62040,VDEARN 4105,VDE0126,UE C 15-712,CIQ/C11,EN⁵0549,CE 10-21,CE10-16,IEC62116,EC61727,AS/NZS 4777,G⁹8,TOR Eneugar | ||||||
* The AC Voltage Range may vary depending on speclic country gid standard.
