Metal flat roof solar mounting
Specification
Wind Speed ：< 60m/s Snow load ：1.4 KN/m2 Standard：AS1170.2
Degree ：0° Arrangement ：Vertical or Horizontal Warranty：10 years
Installation Manual
1.Fix L-feet by tapping screw, ensure waterproof.
2.Installing rail by side of L-feet, L-feet’s hole can adjust the height of rail.
3.Two rails supported each panel, fix panels by mid clamp and end clamp kit. Notice, here we can use L feet or seam clamp, etc. By actual factors.
Normal metal roof mounting accessories shown as bellow
| Mounting rail | L-FEET (Refer) | Seam clamp (Refer) | End clamp kit | Mid clamp kit |
 |
 |
 |
 |
 |

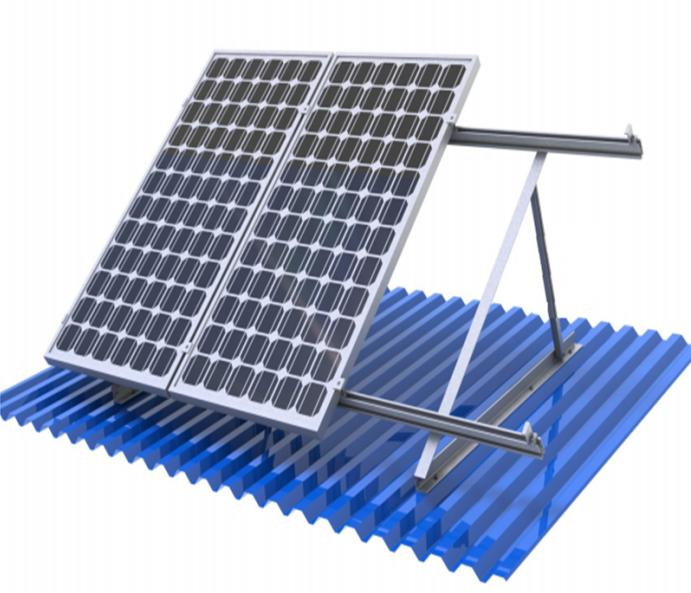

Aluminum alloy solar mounting system with triangle structure on metal Roof
Specification：
Wind Speed ：< 42m/s Snow load ：1.4 KN/m2 Standard：AS1170.2
Degree ：10°-70 Arrangement ：Vertical or Horizontal Warranty：10 years
Installation Manual：
1.Install triangle bracket at first, here triangle bracket contains bottom L-profile, rear post and main beam.
2.Install mounting rail upon main beam, 2 rails per row
3.Install PV panels by mid clamp and end clamps.
Main parts shown as bellow
| Triangle bracket profile | Mounting rail | Rail splice | End clamp kit | Mid clamp kit |
 |
 |
 |
|
|
