Metal roof solar mounting
Specification
Wind Speed ：< 60m/s Snow load ：1.4 KN/m2 Standard ：AS1170.2
Degree ：0° Arrangement ：Vertical or Horizontal Warranty：10 years
Installation Manual
1.Fix L-feet by tapping screw, ensure waterproof by rubber plate.
2.Installing rail by side of L-feet, L-feet’s hole can adjust the height of rail.
3.Two rails supported each panel, fix panels by mid clamp and end clamp kit.
Normal metal roof mounting accessories shown as bellow
| Rail | L-feet kit | End clamp kit | Mid clamp kit |
 |
 |
 |
 |
By different section of metal roof, also we can choose other types of brackets

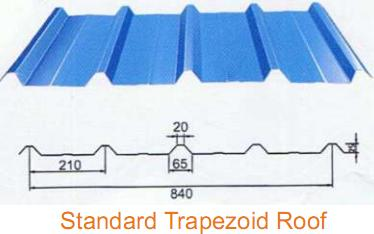

Trapezoid roof bracket (Normal type):
| Part No. | YK-PM02 |
| Material | Stainless steel +Tapping screw+ Socket bolt kit |
| Finish | N/A |
| Remark | By short Tapping screw to fix bracket |

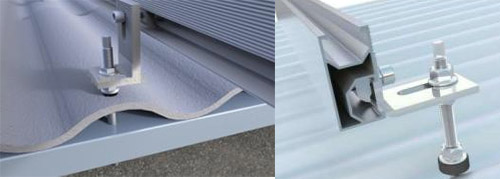

Corrugated metal roof bracket(Normal type):
| Part No. | YK-PM03 |
| Material | Stainless steel +hanger bolt+ Socket bolt kit |
| Finish | N/A |
| Remark | Drilled into purlin of metal roof |
Seam Clamp (Normal type):
| Part No. | YK-PM04 |
| Material | Aluminum alloy +Socket bolt kit |
| Finish | N/A |
| Remark | Seam clamp |
