Product
Roof adjustable solar mounting
Specification
Wind Speed ：< 42m/s Snow load ：1.4 KN/m2 Standard ：AS1170.2
Degree ：0°-70 Arrangement ：Vertical Warranty：10 years
Installation Manual
Universal adjustable type metal roof solution.
Installing front bracket and rear bracket upon metal roof by tapping screw, fix adjustable rear post kit into bracket, install rail on the top of post for rear row, install rail upon front bracket, install panels by clamps.

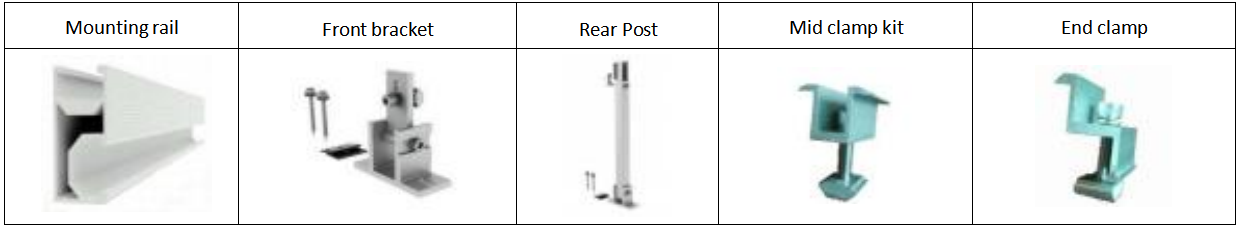

Main parts shown as bellow:

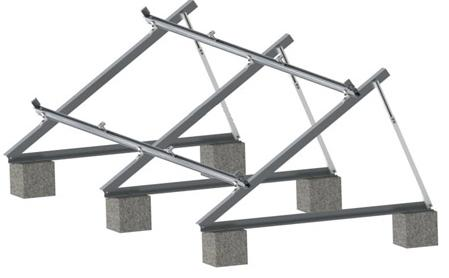

Flat roof triangle structure adjustable solar mounting system
This type solar mounting system can be adjusted by rear adjustable post.
Steady, and easy to install, save your labor cost.
Specification：
Wind Speed ：< 42m/s Snow load ：1.4 KN/m2 Standard ：AS1170.2
Degree ：0°-70 Arrangement ：Vertical Warranty：10 years
Installation Manual：
Universal adjustable type flat roof solution.
Installing front bracket and rear bracket upon down beam by tapping screw, fix adjustable rear post kit into bracket, install rail on the top of post for rear row, install rail upon front bracket, install panels by clamps.

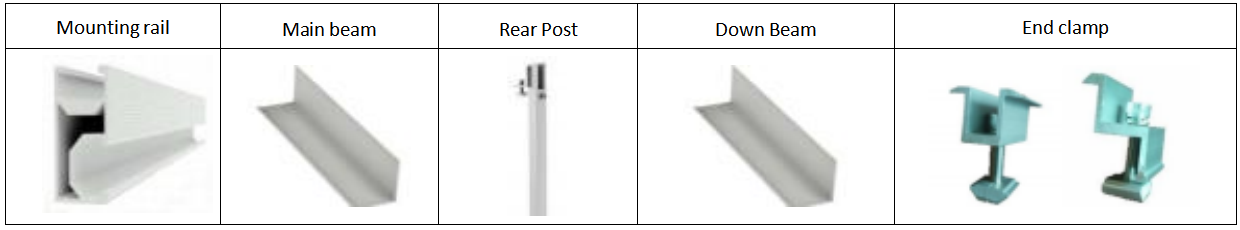

Main parts shown as bellow:
