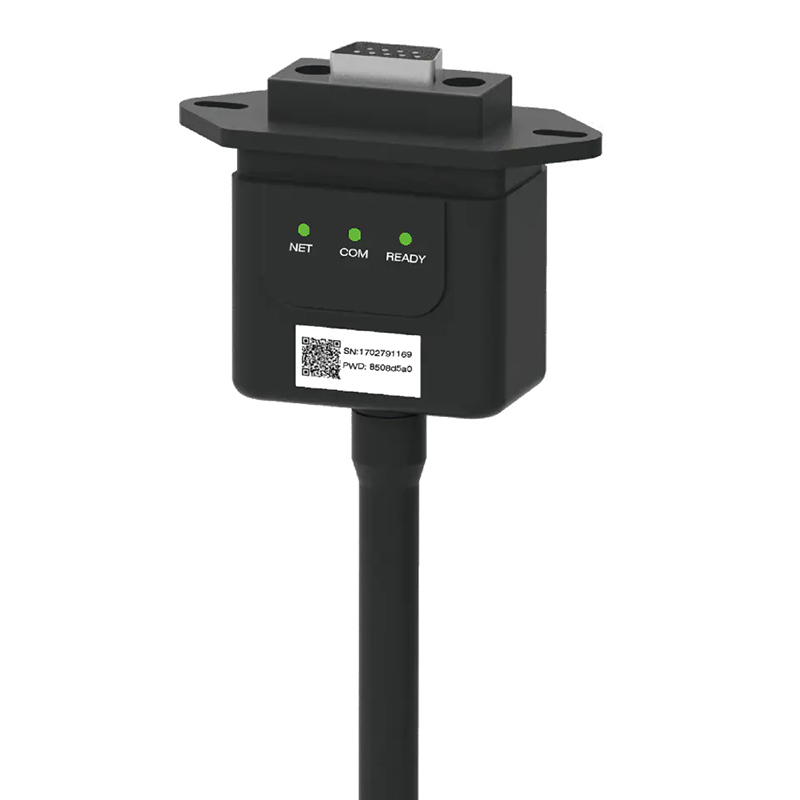

Stick Logger
Remotely shutdown function
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
● External light indicator, logger status at a glance;
● Plug & play, pick power within inverter, no external power needed, easy to install;
● Independent from inverter to protect parts inside inverter, eliminate potential problems;
● IP65 water-proof design, resistant to bad weather, enhance stability;
● External design, easier to replace faulty equipment;
● End-user can monitor yields at any time with SOLARMAN APP.
Smart Monitoring Platform
|
Product Model |
LSG-3 LSG-4 LSW-3 LS4G-3 LSE-3 LS4G-3 LSE-3 |
||||||||
|
Remote Communication Interface |
GPRS |
GPRS |
WiFi |
4G |
LAN |
||||
|
Working Frequency |
GSM850 / EGSM900 / DCS1800 / PCS 1900MHz |
GSM850 / EGSM900 / DCS1800 / PCS 1900MHz |
2.142GHz~ 2.484GHz |
704MHZ-960MHZ 1710MHZ-2690MHZ |
Adaptive Network; 10M / 100M |
||||
|
Satellite Positioning |
/ |
GPS / Beidou ＜15m |
/ |
/ |
/ |
||||
|
Antenna |
External GPRS Stick Antenna |
External GPRS Stick Antenna |
External WiFi Stick Antenna |
External 4G Stick Antenna |
/ |
||||
|
Data Interface |
RS485 / RS232 / TTL |
||||||||
|
Working Voltage |
DC4.7V~DC15V |
||||||||
|
Working Power |
3W |
3W |
1.5W |
5W |
1W |
||||
|
SIM Card |
Chip Card / MicroSIM |
Chip Card / MicroSIM |
/ |
MicroSIM |
/ |
||||
|
Memory |
2M Flash (2M-16M Optional) |
||||||||
|
Working Temperature |
-40C~+85C |
||||||||
|
Working Humidity |
＜90% (No Condensing) |
||||||||
|
No.of Connections |
One |
||||||||
|
Serial Communication Rate |
bps (1200-115200bps Configurable) |
||||||||
|
Data Acquisition Interval |
Default 5min (1-15min Configurable) |
||||||||
|
User Configuration |
AT+InstructionSet Remote Server
|
||||||||
|
Firmware Upgrade |
Remote Upgrade |
||||||||
|
Others |
Real-time Control, Data resuming |
||||||||
