Tile roof solar mounting Featured Image

Tile roof solar mounting

Short Description:

Tile roof solar mounting system mainly used for residential roof, and use aluminum alloy rail with stainless steel roof hook to install.
Chasun Solar has the excellent engineer team and quality management system to provide the perfect service.

Send email to us

Product Detail

Product Tags

Specification

Wind Speed ：< 60m/s Snow load ：1.4 KN/m2 Standard：AS1170.2
Degree：0° Arrangement: Vertical or Horizontal Warranty：10 years

Installation Manual

1.Installing roof hook by tapping screws；
2.Installing rail by side of roof hook, hook’s hole can adjust the height of rail.
3.Two rails supported each panel, fix panels by mid clamp and end clamp kit

Normal tile roof mounting accessories shown as bellow

Mounting rail	Roof hook kit	End clamp	Mid clamp kit

By different section of tile roof, also we can choose other types of brackets：

Roof hook 02 (Normal type):

Tile roof solar mounting (4)

Part No.	YK-PT02
Material	Stainless steel +Tapping screw+ Socket bolt kit
Finish	N/A
Remark	The length of tile is long than normal

Tile roof solar mounting (10)

Corrugated metal roof bracket(Normal type):

Tile roof solar mounting (5)

Part No.	YK-PT03
Material	Stainless steel +Tapping screw+Socket bolt kit
Finish	N/A
Remark	Used for another type rails

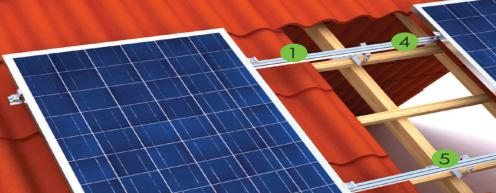

Tile roof solar mounting (9)

Also we can choose others according to other actual section of tile roof as bellow:

YK-PT04	YK-PT05	YK-PT06	YK-PT07	YK-PT08

Previous: Metal roof solar mounting

Next: Asphalt shingle roof solar mounting
